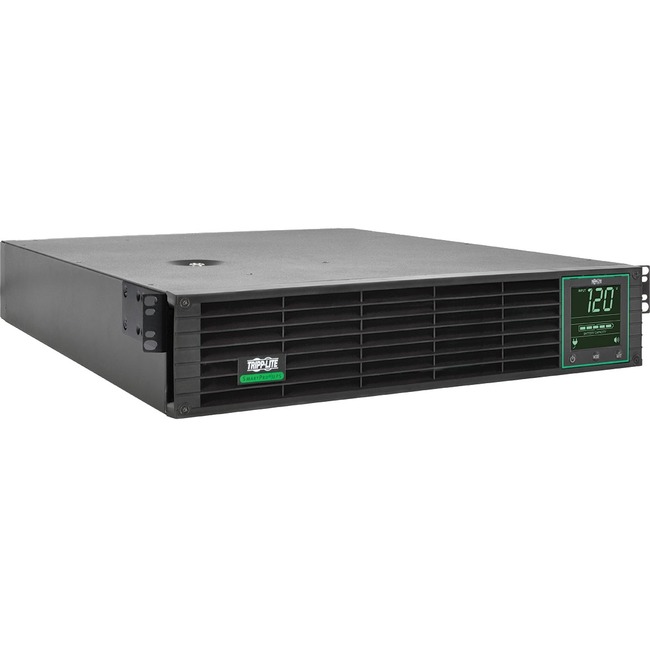

Tripp Lite 2200VA 1920W UPS Smart Lithium Ion LiFePO4 LCD USB DB9 2URM - 2200 VA/1920 W - 110 V AC, 115 V AC, 120 V AC - 5.10 Minute - 2U Rack-mountable - 5.10 Minute - 4 x NEMA 5-15/20R, 4 x NEMA 5-20 - Over Voltage, Under Voltage
2200 VA/1920 W - 110 V AC, 115 V AC, 120 V AC - 5.10 Minute - 2U Rack-mountable - 5.10 Minute - 4 x NEMA 5-15/20R, 4 x NEMA 5-20 - Over Voltage, Under Voltage
| Load Capacity (VA) | 2200 VA |
| Load Capacity (W) | 1920 W |
| Phase | Single Phase |
| Receptacle Detail | 4 x NEMA 5-15/20R |
| Receptacle Detail | 4 x NEMA 5-20 |
| Waveform Type | Pure Sine Wave |
| Alarm | UPS StartUp |
| Alarm | UPS Fault |
| Alarm | Remote Shutdown |
| Alarm | Overload |
| Alarm | Low Battery |
| Alarm | Power Failure |
| Application/Usage | Server |
| Application/Usage | Network Storage Device |
| Backup/Run Time (Full Load) | 5.10 Minute |
| Backup/Run Time (Half Load) | 11.70 Minute |
| Brand Name | Tripp Lite |
| Certifications & Standards | - UL1778 (USA)
- Tested to CSA (Canada)
- Tested to NOM (Mexico)
- Meets FCC Part 15 Category A (EMI)
|
| Circuit Breaker | Yes |
| Country of origin | China |
| Depth | 17.3" |
| Environmental Certification | RoHS |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Input current | 16 A |
| Input voltage | 120 V AC |
| Limited Warranty | 5 Year |
| Load Capacity | 2200 VA/1920 W |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART2200RM2UL |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Protects Mission-Critical Rack-Mounted Equipment - Provides fully regulated sine wave AC output for servers network storage devices telecom hardware and other applications where long battery lifespan is critical
- Audible alarm signals loss of utility power overload and low battery
- 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
- 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
- 570-joule surge suppression rating
- 0.9 power factor rating
- 97% line-mode efficiency rating saves money in energy costs
Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery - More than 2x the service life
- Up to 3x more charge/discharge cycles
- Recharges to 100% capacity in less than 2 hr.
- Weighs 60% less reducing overall UPS weight
- Supports half load up to 11.7 min. and full load up to 5.1 min.
2 Load Banks with Switchable Outlets - Can control 2 outlets remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation (AVR) - Maintains 120V nominal output over input range of 83V-145V without using battery power
EMI/RFI Line Noise Filtering - Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
Interactive LCD Screen - Front-panel LCD with detailed UPS and site power status and operating data
- Rotates for easy viewing in rack-mount or tower configurations
Optional Network Management Cards - Compatible with Tripp Lite UPS management cards WEBCARDLX SNMPWEBCARD and RELAYIOCARD
Communications Ports - USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at <li">www.tripplite.com/poweralert
- <li">EPO port supports emergency shutdown in large facilities
Versatile Installation Options - Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
- Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
- Mounts in upright tower position with optional 2-9USTAND accessory
Backed by Tripp Lite's Ultimate Lifetime Insurance - $250000 Ultimate Lifetime Insurance covers any connected components
|
| Maximum Operating Temperature | 122°F (50°C) |
| Output voltage | 115 V AC |
| Output voltage | 110 V AC |
| Package Contents | - SmartPro SMART2200RM2UL 2200VA UPS
- USB cable
- DB9 cable
- EPO cable
- Rack-mounting hardware
- Owner's manual
|
| Plug/Connector Type | NEMA 5-20P |
| Product Line | SmartPro |
| Product Name | SmartPro SMART2200RM2UL 2200VA UPS |
| Product Type | Line-interactive UPS |
| Protection Type | Under Voltage |
| Protection Type | Over Voltage |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-20 |
| Receptacle Type | NEMA 5-15/20R |
| Sound Emission | 45 dB(A) |
| Surge energy rating | 570 J |
| Thermal Dissipation | 393.59 W |
| Transfer Time | 5 ms |
| Typical Battery Recharge Time | 1.40 Hour |
| UPC Alternates | 037332192646 074664385292 760902547651 |
| Weight (Approximate) | 41.78 lb |
| Width | 19.4" |
