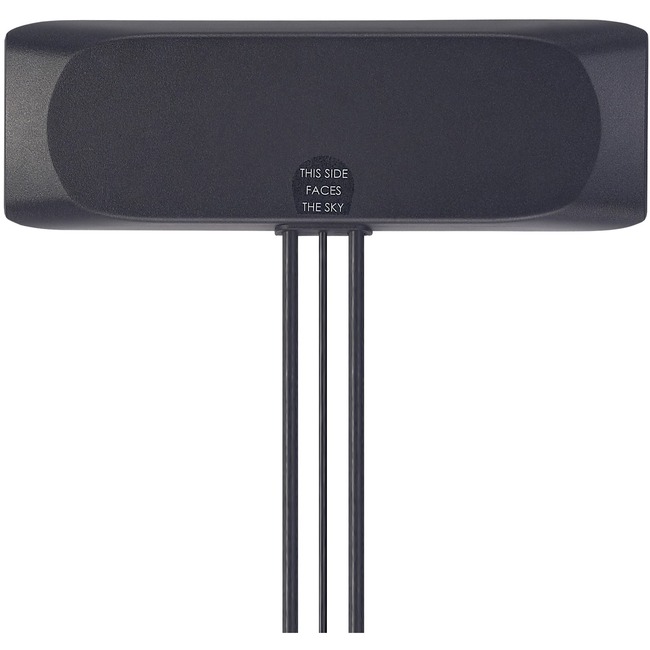

Taoglas Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna
New
Taoglas Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna - 698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3410 MHz to 3490 MHz - GPS, GLONASS, Cellular Network - Black - Adhesive Mount - Omni-directional - SMA Connector
| $78.34 Retail $119.51 |
- IP67 Antenna
- 1* GPS-GLONASS-GALILEO: 2 meter RG-174
- SMA(M)
- 2 * LTE: 2 meter Low loss NFC-200 SMA(M)ST
- Dimensions: 205.8mm x 58mm x 12.4mm
- RoHS Compliant
Subscribe & Save5%
| Buy Once $78.34 | |||
| Subscribe & Save$74.42 | |||
| Delivery Ferquency |
Taoglas Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna - 698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3410 MHz to 3490 MHz - GPS, GLONASS, Cellular Network - Black - Adhesive Mount - Omni-directional - SMA Connector
698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3410 MHz to 3490 MHz - GPS, GLONASS, Cellular Network - Black - Adhesive Mount - Omni-directional - SMA Connector
698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3410 MHz to 3490 MHz - GPS, GLONASS, Cellular Network - Black - Adhesive Mount - Omni-directional - SMA Connector
Product Specifications
| Directivity | Omni-directional |
| Operating Frequency Range | 3410 MHz to 3490 MHz |
| Operating Frequency Range | 698 MHz to 803 MHz |
| Operating Frequency Range | 1920 MHz to 2170 MHz |
| Operating Frequency Range | 1710 MHz to 1880 MHz |
| Operating Frequency Range | 824 MHz to 894 MHz |
| Operating Frequency Range | 1850 MHz to 1990 MHz |
| Operating Frequency Range | 2490 MHz to 2690 MHz |
| Operating Frequency Range | 880 MHz to 960 MHz |
| Application/Usage | GPS |
| Application/Usage | GLONASS |
| Application/Usage | Cellular Network |
| Connector Type | SMA |
| Country of origin | Taiwan |
| Depth | 8.10" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Adhesive Mount |
| Height | 0.49" |
| Limited Warranty | 1 Year |
| Manufacturer | Taoglas |
| Manufacturer Part Number | MA240.LBI.001 |
| Manufacturer Website Address | http://www.taoglas.com |
| Marketing Information | The MA.240 4G Genesis antenna is an omni-directional fully IP67 waterproof external M2M antenna for use in telematics transportation and remote monitoring applications worldwide. It is designed to be mounted directly on glass or plastic in the interior of vehicles. Typical applications - HD Video over LTE - First Responder and Emergency Services - Automotive Vehicle Tracking and Telematics This unique antenna delivers powerful dual antenna technology for worldwide 4G LTE bands at 700MHz / 800MHz / 1700MHz / 1800MHz / 2600MHz plus GPS/GLONASS/GALILEO for next generation location accuracy. 4G wireless applications demand high speed data uplink and downlink. High efficiency and high gain antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two LTE antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast smaller LTE antennas with poorer quality thinner cables will have much reduced efficiency and isolation which would lead to a large drop in system throughput or drops and may indeed not make a system connection at all. The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands leading to higher location accuracy and stability of tracking in urban environments. Finally if your device requires USA LTE certification with an external antenna then the MA240 is the ideal solution to pass approvals. Cable length and connector types are customizable. Contact your regional Taoglas sales office for support. |
| Packaged Quantity | 1 |
| Product color | Black |
| Product Line | Genesis |
| Product Model | MA240 |
| Product Name | Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna |
| Product Type | Antenna |
| Weight (Approximate) | 8.80 oz |
| Width | 2.28" |
