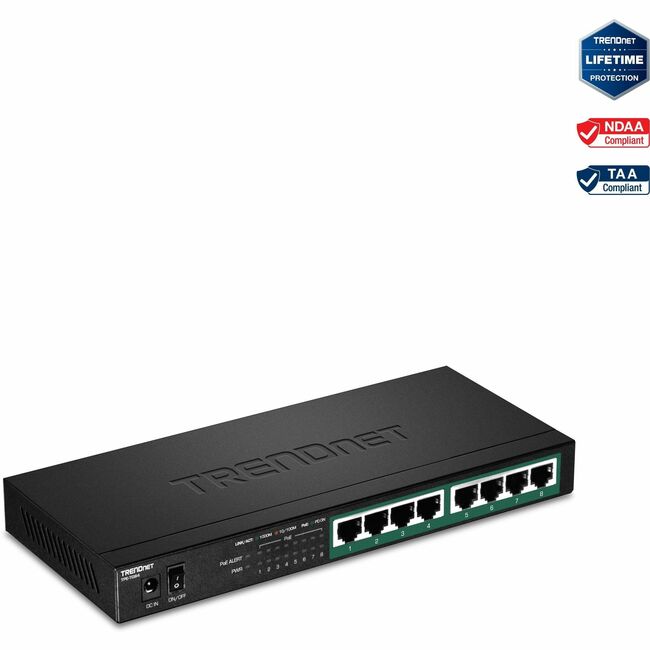

TRENDnet 8-Port Gigabit PoE+ Switch, 120W PoE Power Budget, 16Gbps Switching Capacity, IEEE 802.1p QoS, DSCP Pass-Through Support, Fanless, Wall Mountable, Lifetime Protection, Black, TPE-TG84 - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Power Adapter - 126 W Power Consumption - 120 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable, Compact - 3 Year Limited Warranty
8 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Power Adapter - 126 W Power Consumption - 120 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable, Compact - 3 Year Limited Warranty
| Network (RJ-45) | Yes |
| PoE Budget | 120 W |
| Product Material | Metal |
| Total Number of Network Ports | 8 |
| Country of origin | Taiwan |
| Depth | 4.1" |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Wall Mountable |
| Form factor | Compact |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.1" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 2 |
| Limited Warranty | 3 Year Lifetime |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE-TG84 |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | - DEVICE INTERFACE: 8 x Gigabit PoE+ ports; LED indicators
- POE+ POWER BUDGET & SWITCH CAPACITY: 120 W PoE power budget supports up to eight power over Ethernet devices and the 8-port gigabit PoE+ network switch provides 16Gbps switching capacity to support edge network installations
- COMPACT FANLESS DESIGN: With a compact and lightweight rugged metal housing design this desktop switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
- OPERATING TEMPERATURE: This 8-port gigabit PoE+ network switch is rated with an operating temperature range of 0° - 40° C (32° - 104° F)
- IEEE and DSCP: IEEE 802.1p QoS and DSCP pass-through support
TRENDnet's 8-Port Gigabit PoE+ Switch model TPE-TG84 reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 120W. The TPE-TG84 PoE+ switch allows you to network PoE devices such as wireless access points IP cameras VoIP phones IP video encoders access controls and more. It features a fanless design and has a convenient option for wall mounting.
PoE+
A 120W PoE power budget supports up to eight Power over Ethernet devices.
Gigabit Ports
Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.
Compact Design
Compact lightweight and fanless this switch is designed for desktops and quiet environments.
FEATURES | PoE+
Supplies up to 30 watts of PoE power per port with a 120W power budget
Gigabit Ports
8 x Gigabit PoE+ Ethernet ports
Compact Design
With a compact and lightweight metal housing design this switch is wellsuited for desktop installations
Switching Capacity
16Gbps switching capacity
Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance
Fanless
Fanless design is ideal for quiet environments that require silent operation
LED Indicators
LED indicators convey port status More from the Manufacturer |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3p |
| Package Contents | - 8-Port Gigabit PoE+ Switch
- Quick Installation Guide
- Power Adapter (55V DC 2.55A)
|
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Power consumption | 126 W |
| Power source | Power Adapter |
| Product Name | 8-Port Gigabit PoE+ Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 710931162257 |
| Weight (Approximate) | 1.28 lb |
| Width | 9.4" |
