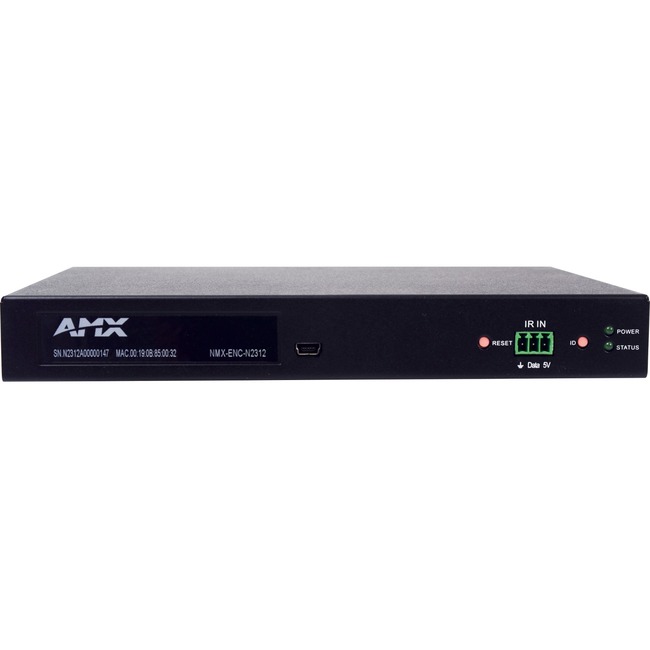

AMX N2300 Series 4K UHD Video over IP Stand Alone Encoder with KVM, PoE - Functions: Video Encoding, Video Scaling, Audio Embedding, Video Streaming - 4096 x 2160 - VGA - Network (RJ-45) - Rack-mountable
Functions: Video Encoding, Video Scaling, Audio Embedding, Video Streaming - 4096 x 2160 - VGA - Network (RJ-45) - Rack-mountable
| Brand Name | AMX |
| Country of origin | Taiwan |
| Depth | 5.5" |
| Form factor | Rack-mountable |
| Functions | Video Encoding |
| Functions | Video Streaming |
| Functions | Video Scaling |
| Functions | Audio Embedding |
| HDMI | Yes |
| Height | 1.1" |
| Manufacturer | Harman International Industries Inc |
| Manufacturer Part Number | FGN2312-SA |
| Manufacturer Website Address | http://www.harman.com |
| Marketing Information | The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible feature-rich and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096x2160 with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.
Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. The NMX-ENC-N2312 includes standard features like input scaling bi-directional serial IR embedded 7.1 audio and KVMover- IP extension. It also comes in a card version compatible with SVSI's N9206 card cage for high-density applications. FEATURES - Design Flexibility - Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
- Power Over Ethernet (POE) - eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable highdensity installations
- Infrared (IR) - Emitter connection allows control of IR-only display devices
- Fast Install - With Phoenix connectors for Power IR RS232 serial and analog audio interfaces
- Balanced and Unbalanced Audio - Embedded 7.1 digital audio or balanced/unbalanced analog audio
- Pass Through HDMI - allows easy installation with local display such as desktop PC applicaitons
- Multiple Connection Options - RJ-45 and SFP network connectors and HDMI video connections
- KVM - Single USB-B for KVM applications
- Native NetLinx - NetLinx Studio will easily recognize the device
|
| Maximum resolution | 4096 x 2160 |
| Product Model | NMX-ENC-N2312 |
| Product Name | N2300 Series 4K UHD Video over IP Stand Alone Encoder with KVM PoE |
| Product Series | N2300 |
| Product Type | Video Encoder |
| UPC Alternates | 718878025758 |
| Weight (Approximate) | 1.60 lb |
| Width | 7.9" |
