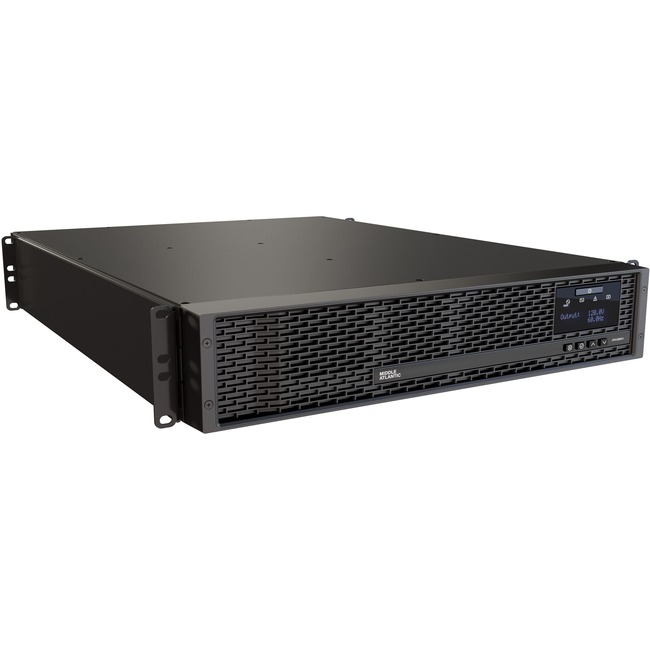

Middle Atlantic NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS

Middle Atlantic NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS

New
Middle Atlantic NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS - Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-20R
0 Review(s) Item: UPX-2000R-2 | By: Middle Atlantic |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • 8 outlets-Bank Controlled option with (2) 4 outlet banks-Individually Controlled options for all 8 outlets via RackLink™
  • All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
  • Everything is assembled and connected right from the factory saving you time during your installations-Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail-The battery is already connected so just plug it in
  • The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications
  • The NEXSYS UPSs are RackLink compatible for remote monitoring and management and some are compatible right out of the box! Look for RLNK in the part number. Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect d
More Details
Subscribe & Save5%
Buy Once $1,427.16
Subscribe & Save$1,355.80
Delivery Ferquency
Sorry This Product is Currently not Available to Buy.

You may be also interested
Middle Atlantic NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS - Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-20R
Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-20R

Product Specifications

DC System Voltage48 V DC
Load Capacity (VA)2000 VA
Load Capacity (W)1800 W
Operating Humidity0% - 95%
Output Frequency60 Hz
Receptacle Detail8 x NEMA 5-20R
Storage Temperature5°F (-15°C) - 113°F (45°C)
Waveform TypePure Sine Wave
Additional Warranty Information2 Years Battery
AlarmOverload
AlarmLow Battery
AlarmOn Battery
AlarmBattery Disconnected
AlarmFault
Application/UsageDesktop
Application/UsageBank
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)10 Minute
Battery capacity9000 mAh
Battery CharacteristicsMaintenance-free Sealed
Battery ChemistryLead Acid
Battery Size12V
Brand NameMiddle Atlantic
Country of originChina
Depth23.6"
DisplayLCD
Environmental CertificationENERGY STAR 2.0
Environmental CertificationREACH
Environmental CertificationRoHS 3
Form factorRack-mountable
Height3.4"
Hot SwappableYes
Input voltage120 V AC
Input Voltage Range80 V AC - 158 V AC
Limited Warranty3 Year
Load Capacity2000 VA/1800 W
ManufacturerLegrand Group
Manufacturer Part NumberUPX-2000R-2
Manufacturer Website Addresshttp://www.legrand.us
Maximum Operating Temperature104°F (40°C)
Network ManagementSNMPv3
Network ManagementSNMP/Telnet/SSH
Number of Batteries4
Output voltage127 V AC
Output voltage110 V AC
Package Contents
  • NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS
  • 6' (1.8m) IEC Power Cord
Plug/Connector TypeNEMA 5-20P
Product LineNEXSYS
Product NameNEXSYS UPX-2000R-02 2000VA Rack-mountable UPS
Product TypeLine-interactive UPS
Receptacle TypeNEMA 5-20R
Sound Emission50 dB
Status IndicatorsLED Indicators:
  • Normal Mode
  • AVR Mode
  • Battery Mode
  • Internal Fault
  • Battery Fault
Surge energy rating1000 J
Transfer Time10 ms
Typical Battery Recharge Time8 Hour
UPC Alternates656747395598
Weight (Approximate)63.05 lb
Width17.3"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
