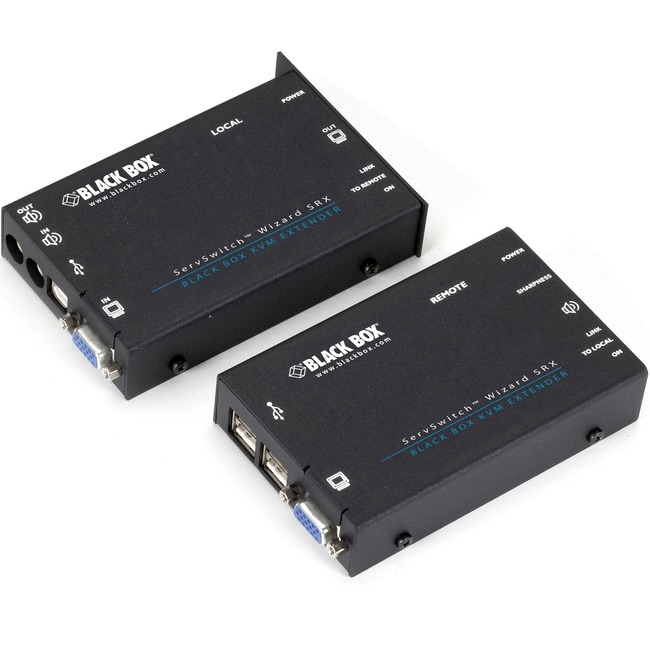

Black Box ServSwitch Wizard SRX KVM Console/Extender - 1 Computer(s) - 1 - 1 x HD-15 Video, 4 x Type A USB, 1 x Mini-phone Audio
1 Computer(s) - 1 - 1 x HD-15 Video, 4 x Type A USB, 1 x Mini-phone Audio
| KVM Technology | Analog |
| Brand Name | Black Box |
| Connectivity technology | Wired |
| Country of origin | United Kingdom |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Limited Warranty | 1 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU5051A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The power of transparent USB
The ServSwitch Wizard™ USB SRX KVM Extender single-video from Black Box combines VGA USB 1.1 or USB 2.0 and audio and sends them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB. DDC EDID read and store support
Modern graphics adapter cards - even with analog output - require the presence of Display Data Channel (DDC) information. Without it they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit's non-volatile memory. Small form factor
The ServSwitch Wizard USB SRX KVM Extender's compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to 16 single-video units in just 2U. Local access
The local unit features audio and VGA feed-through giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports. Dual-user configuration
With two single-video units you can connect two workstations with keyboards monitors and mice to one CPU tower. Two users can use local connections to monitor and diagnose the CPU. This setup is ideal for a remote CPU that doesn't need to be monitored simultaneously by two users. |
| Maximum Video Resolution | 1920 x 1440 |
| Number of Computers Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Number of VGA Ports | 3 |
| Package Contents | - 1 x Transmitter
- 1 x Receiver
- 1 x 5 VDC 2.5A Power Supply
- 2 x Rackmount Plates
- 1 x USB Cable (A-B) 1.8m (6 ft.)
- 1 x VGA Cable (HD15 Male-HD15 Male) 1.8m (6 ft.)
- 1 x Audio Cable (3.5mm male to male) 1.8m (6 ft.)
- 1 x Set of Rubber Feet (4)
|
| Product Line | ServSwitch |
| Product Name | ServSwitch Wizard SRX KVM Console/Extender |
| Product Type | KVM Console/Extender |
| UPC Alternates | 007540975690 822088064800 |
