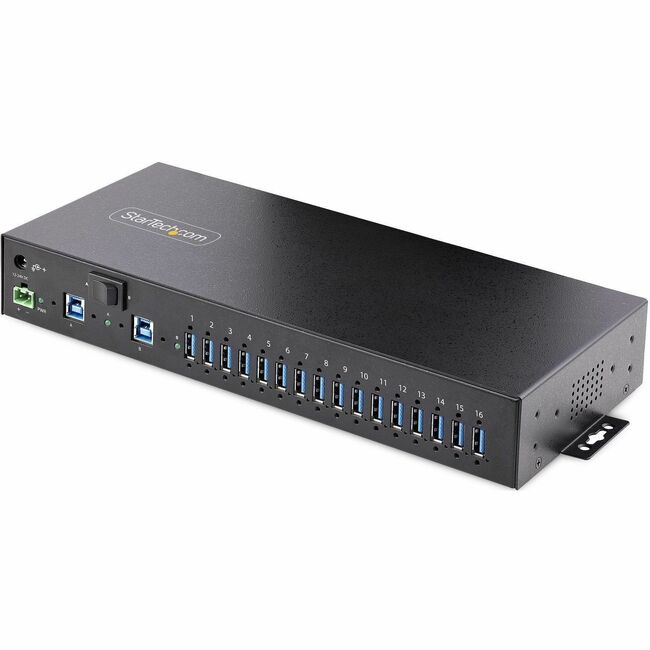

StarTech.com 16-Port Industrial USB 3.0 Hub 5Gbps, Mountable, Terminal Block Power Up to 120W Shared, USB Charging, Dual-Host Hub/Switch - 16 USB-A 3.2 Gen 1 (5Gbps shared) Downstream Facing Ports (DFP) w/dual-host switch/hub - Steel enclosure - Locking ports - Level-4 ESD protection 15kV air/8kV contact - Rack/Surface/DIN rail mountable - BC 1.2 charging w/power source (not incl.)
16 USB-A 3.2 Gen 1 (5Gbps shared) Downstream Facing Ports (DFP) w/dual-host switch/hub - Steel enclosure - Locking ports - Level-4 ESD protection 15kV air/8kV contact - Rack/Surface/DIN rail mountable - BC 1.2 charging w/power source (not incl.)
| Power Plug Type | Type M |
| Form factor | DIN Rail/Surface/Rack Mountable |
| Height | 0.2" |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Length | 0.5" |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 5G16AINDS-USB-A-HUB |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The 16-Port Industrial USB 3.0 Hub with 5Gbps of shared bandwidth provides fast and efficient transfer speeds making it an ideal solution for data-intensive applications. The hub features a 2-port host switch enabling users to switch between two host devices streamlining device management. The hub also includes ESD protection to safeguard against static electricity. Versatile mounting hardware is included for flexible installation options. Additionally the hub supports USB BC 1.2 enabling fast charging of battery-powered USB devices. The combined features of this USB hub ensure stable and reliable functionality for use in IT and industrial applications. Engineered for Use in Industrial Environments This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that provides protection against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection with 15kV air and 8kV contact discharge ratings to safeguard against damage caused by static electricity. These features make the USB hub an excellent choice for use in factories production lines and other industrial settings. Three Mounting Options The 16-Port USB Hub offers three mounting options to accommodate a wide variety of applications from IT to industrial. The 19"" rackmount rails included with the 16-Port USB hub are compliant with EIA-310 standards ensuring compatibility with standard racks. These rails can be used to install the USB hub into 1U of rack space for applications in data centers and server rooms. The built-in surface mount is perfect for workstations desks or walls where users need quick access to the USB hub. The standard DIN-rail (Top Hat/TH) mounting hardware is best suited for industrial automation and control equipment. Connect and Charge USB Devices This USB Hub features two 12-24V DC power options. Power can be inputted using the 2-wire terminal block connector or the barrel connector. Both options enable support for USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. Ports are grouped in 8 pairs (1&2 3&4 5&6 7&8 9&10 11&12 13&14 15&16) and each pair supports max 3.0A/15W combined (1.5A/7.5W per port) or max 2.0A/10W per port when only one of both ports is used. Dual-Host Switch The USB Hub can connect to two separate desktop or laptop computers and features a dual-host switch that enables easy toggling between them. The dual-host switch provides a convenient solution for applications requiring two host devices. Wide Device Compatibility This USB Hub is OS independent ensuring compatibility with all operating systems including Windows macOS and Linux. |
| Package Contents | - 5G16AINDS-USB-A-Hub
- 1 x 10 ft [3 m] USB-A to USB-B Cable
- Terminal Block Connector (Attached)
- Rack Mounting Brackets
- 2 x DIN Rail Mounting Brackets (with Mounting Screws)
- Rack Mounting Screws
- 1 x Quick-Start Guide
|
| Packaged Quantity | 1 |
| Product color | Black |
| Product Type | USB Hub |
| Total Number of USB Ports | 16 |
| UPC Alternates | 065030894999 |
| Weight (Approximate) | 2.43 lb |
| Width | 1.2" |
