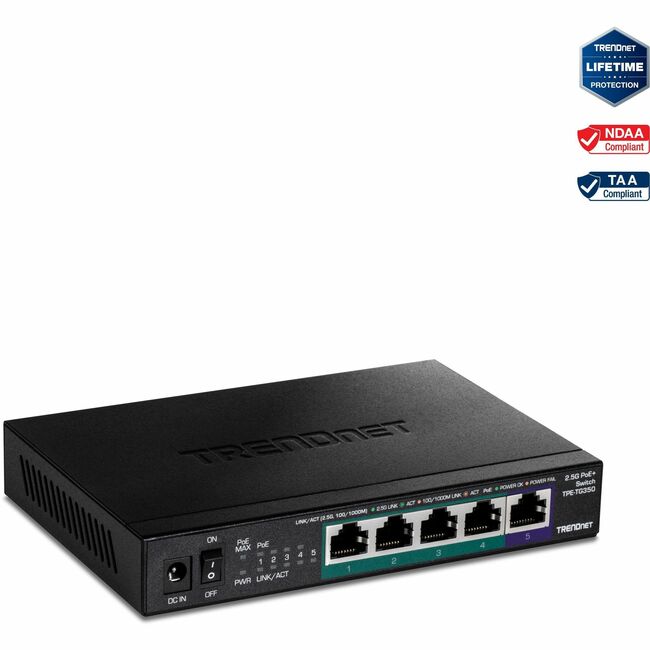

TRENDnet 5-Port Unmanaged 2.5G PoE+ Switch, Fanless, Compact Desktop Design, Metal Housing, 2.5GBASE-T Ports, IEEE 802.3bz, 55W PoE Budget, Life protection, Black, TPE-TG350 - 5 Ports - 2.5 Gigabit Ethernet - 2.5GBase-T - 2 Layer Supported - Power Supply - 7.83 W Power Consumption - 55 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable - Lifetime Limited Warranty
5 Ports - 2.5 Gigabit Ethernet - 2.5GBase-T - 2 Layer Supported - Power Supply - 7.83 W Power Consumption - 55 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable - Lifetime Limited Warranty
| Network (RJ-45) | Yes |
| PoE Budget | 55 W |
| Product Material | Metal |
| Total Number of Network Ports | 5 |
| Country of origin | Taiwan |
| Depth | 4" |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Form factor | Wall Mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.1" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | No |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE-TG350 |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | - 5 x 2.5GBASE-T ports
- 55W PoE power budget
- IEEE 802.3bz (2.5G) compliant
- Supports IEEE 802.3at/af PoE standards
- Backwards compatible with 10/100/1000Mbps devices
- 40Gbps switching capacity
- Fanless design eliminates noise
- Wall mountable for installation flexibility
- Lifetime Warranty
Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's Unmanaged 2.5G PoE+ Switches. These 2.5G PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G PoE+ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G PoE+ switches are cost-effective solutions to increase your network's throughput. A 55W total PoE power budget on this PoE+ switch supplies up to four PoE+ devices with up to 30W per port.
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
Wall Mountable
The 2.5G PoE+ switches feature a metal housing with a convenient wall mountable design for greater installation flexibility.
PoE+
A 55W total PoE power budget on this PoE+ switch supplies up to four PoE+ devices with up to 30W per port.
NETWORKING SOLUTION | FEATURES | Easy Installation
No configuration needed simply connect network devices to the 2.5G multi-gig PoE+ switch
PoE+
A 55W total PoE power budget on this PoE+ switch supplies up to eight PoE/PoE+ devices with up to 30W per port
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports this multi-gigabit PoE+ switch provides higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Housing Design
Sturdy metal housing
Wall Mountable
Features a convenient wall mountable design for better installation flexibility
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 12KB) for increased performance
LED Indicators
LED indicators on the 2.5G PoE+ switch convey port status More from the Manufacturer |
| Media Type Supported | Twisted Pair |
| Network Technology | 2.5GBase-T |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3at |
| Package Contents | - 5-Port Unmanaged 2.5G PoE+ Switch
- Quick Installation Guide
- Power Brick (55V 2.22A)
- Power Cord (1.5m / 4.9 ft.)
|
| Port/Expansion Slot Details | 4 x 2.5 Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 1 x 2.5 Gigabit Ethernet Network |
| Power consumption | 7.83 W |
| Power source | Power Supply |
| Product Name | 5-Port Unmanaged 2.5G PoE+ Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 710931162127 |
| Weight (Approximate) | 1.98 lb |
| Width | 11.3" |
