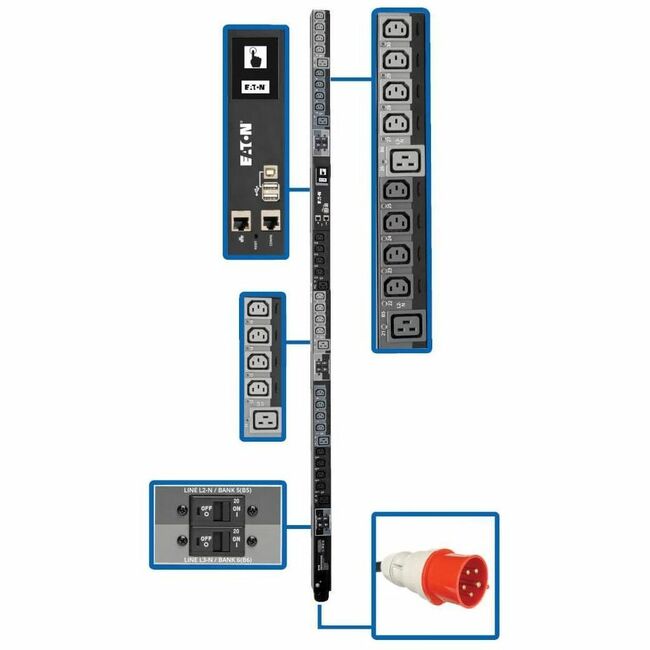

Tripp Lite 3-Phase PDU Switched 22.2kW 220/230V 24 C13 6 C19 Touchscreen 0U
| $1,673.77 Retail $2,830.46 |
- 22.2kW 220/230V 3-phase switched 1.8m 0U PDU
- 30 individually controllable outlets-24 C13, 6 C19
- Built-in LX Platform interface for remote access 24/7
- IEC 309 32A Red 380/400V PDU input with 1.8m AC power cord
- Touchscreen LCD with mobile access option via QR code
Switched - IEC 60309 32A Red 3P+N+E - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 380 V AC, 400 V AC - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Product Specifications
| Mounting Orientation | Vertical |
| PDU Type | Switched |
| Phase | Three Phase |
| Power Rating (Watt) | 23 kW |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 24 x IEC 60320 C13 |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 2.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70" |
| Input current | 32 A |
| Input voltage | 400 V AC |
| Input voltage | 380 V AC |
| Limited Warranty | 2 Year |
| Management | Protocols:
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3XEVSR6G32B |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The PDU3XEVSR6G32B 22.2kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on turn off reboot or lock out power to each outlet. By reducing the frequency of on-site visits these advanced remote capabilities can save you money and reduce downtime. The 0U PDU features 30 switched 220/230V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter cord with IEC 309 32A Red 380/400V plug connects the PDU to a compatible AC power source generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2c SNMPv3 Telnet SSH CLI FTP DHCP and NTP. A color touchscreen LCD lets you toggle between menus to monitor input current level per phase output current per load bank and per outlet with ±1% billing-grade accuracy environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device. |
| Mount Type | Rack-mountable |
| Output voltage | 230 V AC |
| Output voltage | 220 V AC |
| Package Contents |
|
| Plug/Connector Type | IEC 60309 32A Red 3P+N+E |
| Product Name | PDU3XEVSR6G32B 30-Outlet PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| UPC Alternates | 037332195456 |
| Weight (Approximate) | 16 lb |
| Width | 2.2" |
