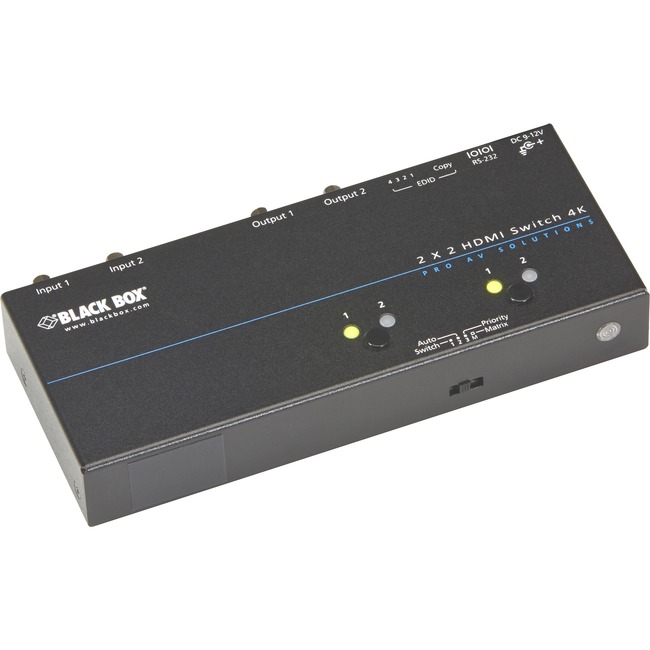

Black Box 4K HDMI Matrix Switch - 2 x 2 - 4096 x 2160 - 4K - 2 x 2 - Display, Blu-ray Disc Player, A/V Receiver, Computer, TV - 2 x HDMI Out
4096 x 2160 - 4K - 2 x 2 - Display, Blu-ray Disc Player, A/V Receiver, Computer, TV - 2 x HDMI Out
| Brand Name | Black Box |
| Connectivity technology | Cable |
| Country of origin | Taiwan |
| Depth | 2.6" |
| Device Supported | Display |
| Device Supported | A/V Receiver |
| Device Supported | TV |
| Device Supported | Blu-ray Disc Player |
| Device Supported | Computer |
| Environmental Certification | RoHS 2 |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Height | 0.8" |
| Limited Warranty | 3 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VSW-HDMI2X2-4K |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The 4K 2 x 2 HDMI Matrix Switch provides unrivaled versatility when controlling video and audio output on high-resolution HDMI displays. Each input can be routed to any output or the same input can be routed to all outputs or any combination eliminating the need to manually move cables to display HDMI video from different sources on different screens.
- 4K support and pixel-perfect resolutions
The switch supports sharp UHD 4K video and works with wide range of resolutions from PC XGA to WUXGA 1920 x 1200 and HDTV/DTV resolutions 480i/480p 576i/576p 720p 1080i and 1080p. It also carries the high-speed digital video signaling of TMDS formats for 10- 12- 16- or 32-bit Deep Color. Plus it provides support for 19:10 aspect ratio data rates up to 6.75 Gbps and 3D formats. - Ideal for any venue where multiple high-definition displays must be managed
It's ideal for corporate theaters meeting rooms classrooms and broadcasting studios. When used with digital signage the switch enables you to quickly switch a display from one digital signage source to another. - Easy switching
Switch using front-panel buttons the included IR remote controller or an RS-232 connection. - Works with all HDMI source devices
Compatible with all HDMI source devices PC monitors plasma HD displays HDTV and audio receivers/amplifiers. - Easy installation
- And more
Remembers the last state during a power cycle.
HDCP 2.0 compliant and Blu-ray ready.
Supports auto EDID function as well as manual copy for compatibility with every monitor.
Front-panel LEDs show automatic scanning input and output status. |
| Maximum Video Resolution | 4096 x 2160 |
| Number of HDMI Inputs | 2 |
| Package Contents | - 4K HDMI Matrix Switch - 2 x 2
- 1 x IR Remote Control
- 1 x RS-232 Cable
- 1 x 12V 1.5A Power Supply with Cord
- 19" Rackmount Brackets
- User Manual
|
| Packaged Quantity | 1 |
| Product Name | 4K HDMI Matrix Switch - 2 x 2 |
| Product Type | Audio/Video Switchbox |
| UPC Alternates | 088064907404 822088079439 |
| Weight (Approximate) | 1.55 lb |
| Width | 6.1" |
