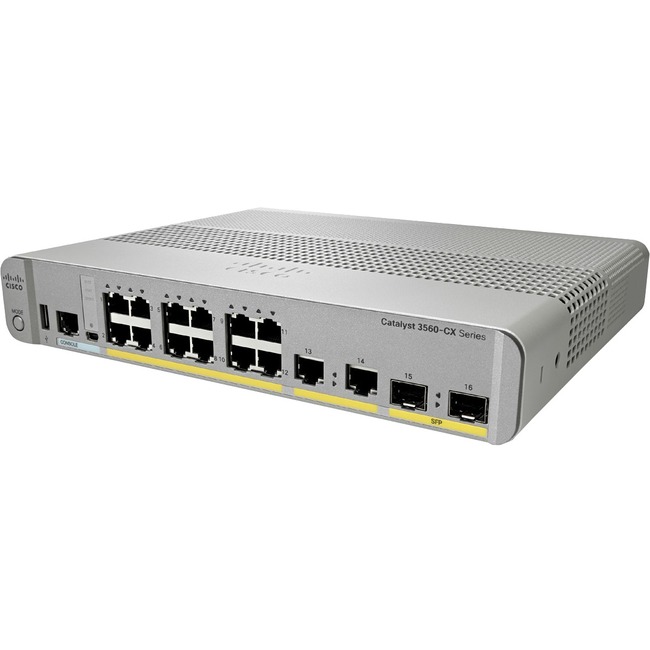

Cisco 3560CX-8TC-S Layer 3 Switch - 8 Ports - Manageable - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - 2 SFP Slots - PoE Ports - Desktop, Rack-mountable, Rail-mountable - Lifetime Limited Warranty
8 Ports - Manageable - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - 2 SFP Slots - PoE Ports - Desktop, Rack-mountable, Rail-mountable - Lifetime Limited Warranty
| Number of Total Expansion Slots | 2 |
| Total Number of Network Ports | 8 |
| Brand Name | Cisco |
| Certifications & Standards | IEEE Standards:
- 802.1D Spanning Tree Protocol
- 802.1p CoS Prioritization
- 802.1Q VLAN
- 802.1s
- 802.1w
- 802.1x
- 802.1AB (LLDP)
- 802.3ad
- 802.3af
- 802.3ah(100BASE-X single/multimode fiber only)
- 802.3x full duplex on 10BASE-T 100BASE-TX and 1000BASE-T ports
- 802.3 10BASE-T specification
- 802.3u 100BASE-TX specification
- 802.3ab 1000BASE-T specification
- 802.3z 1000BASE-X specification
Safety:
- UL 60950-1
- CAN/CSA 22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- CE Marking
- GB 4943
- IEC 60825
Electromagnetic emissions certifications:
- FCC Part 15 CFR 47 Class A North America
- EN 55022 (CISPR22) and EN 55024 (CISPR24) CE marking European Union
- AS/NZS Class A CISPR22:2004 or EN55022 Australia and New Zealand
- VCCI Class A V-3/2007.04 Japan
- KCC (Formerly MIC GB17625.1-1998) Class A KN24/KN22 Korea
- ANATEL Brazil
- CCC China
- GOST Russia
|
| Country of origin | Mexico |
| Depth | 8.4" |
| Environmental Certification | RoHS-6 |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Flash memory | 128 MB |
| Form factor | Desktop |
| Form factor | Rack-mountable |
| Form factor | Rail-mountable |
| Height | 1.8" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Management | - DHCP
- RMON
- VLAN
- SNMP v1 2c 3
- Telnet
- CLI
- QoS
|
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | WS-C3560CX-8TC-S |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity Wi-Fi backhaul and Power over Ethernet (PoE) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet Catalyst compact switches enable IP connectivity for devices such as IP phones wireless access points surveillance cameras PCs and video endpoints. With their quiet fan-less design and compact footprint these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices classrooms hotels retail stores and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Memory Technology | DRAM |
| MTBF | 756260 Hour |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 10 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
| Power source | Power Supply |
| Product Family | Catalyst 3560-CX |
| Product Line | Catalyst |
| Product Model | 3560CX-8TC-S |
| Product Name | 3560CX-8TC-S Layer 3 Switch |
| Product Series | 3560-CX |
| Product Type | Layer 3 Switch |
| Standard Memory | 512 MB |
| Token Ring Port | No |
| UPC Alternates | 088265875328 818214965196 882658753282 |
| Weight (Approximate) | 3.80 lb |
| Width | 10.6" |
