SIIG 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch - 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch allows you to control 4 DP 8K computers using one keyboard and mouse and support to separate for dual head 4K60Hz DisplayPort via MST feature output to extend differnt content or mirror use the same contenct- 4 Computers input & 1 or 2 local output - DP 1.4 up to 8K@30Hz/32.4Gbps - 4 USB-A 5Gbps - 3.5mm Phone & Mic Jacks - Switch Button - Hotkeys- KVM Cable included-
4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch allows you to control 4 DP 8K computers using one keyboard and mouse and support to separate for dual head 4K60Hz DisplayPort via MST feature output to extend differnt content or mirror use the same contenct- 4 Computers input & 1 or 2 local output - DP 1.4 up to 8K@30Hz/32.4Gbps - 4 USB-A 5Gbps - 3.5mm Phone & Mic Jacks - Switch Button - Hotkeys- KVM Cable included- Metal Housing- ESD protection- 3 Years Warranty- TAA Compliant
| Number of DisplayPorts | 6 |
| Number of Local Users Supported | 2 |
| Brand Name | SIIG |
| Country of origin | Taiwan |
| Depth | 11.1" |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Plug and Play |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.4" |
| Input Voltage Range | AC 100-240V |
| Limited Warranty | 3 Year |
| Manufacturer | SIIG Inc |
| Manufacturer Part Number | CE-KV0H11-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | 4 port DisplayPort 8K MST Dual-Head KVM Switch allows you to control 4 DisplayPort 8K computers using one keyboard and mouse and support to separate for dual head 4K60Hz DisplayPort via MST feature output DP 1.4/8K@30 32.4Gbps 4 USB 3.2 Gen-1 ports 3.5mm Phone & Mic Jacks Switch Button Hotkeys Metal Housing TAA Compliant
Features Easily control/switch four DisplayPort 1.4 and USB computers with one set of keyboard & mouse to one 8K DisplayPort monitor or two 4K DisplayPort monitors and supports Multi-Stream Transport (MST) technology to enhance your productivity and efficiency 8K/4K Video Resolution
Supports Ultra HD video resolution up to a single 8K (7680x4320) @30Hz display and dual 4K (4096x2160) @60Hz displays YUV 4:4:4 8-bit Deep color and 3D High Performance Offers a true 32.4Gbps video bandwidth and supports 7.1ch surround sound
Effortlessly Switch
Switch freely between 4 computers/devices in different ways such as front panel selection buttons and USB keyboard hotkeys Multiple Connectivity Port
Comes with four DisplayPort 1.4 video input ports four USB-B 3.2 Gen 1 ports (Host) two DisplayPort 1.4 MST output ports four USB-A 3.2 Gen 1 ports two USB-A 1.1 HID ports for connecting keyboard and mouse five 3.5mm phone jack for stereo audio five 3.5mm phone jack for microphone one DIP Switch for Firmware control one Micro USB for Firmware update four PC1/PC2/PC3/PC4 switch buttons and one DC power jack (12V/2A) USB-A Data Transfer
Easily connect four USB-A 3.2 Gen 1 ports on the front or back with data transfer rate up to 5Gbps for Flash drive Printer Enclosure and other USB peripheral devices and two USB-A 1.1 HID ports with data transfer rate up to 12Mbps for independent HID keyboard and mouse
3.5mm Audio/Mic Supports ten 3.5mm phone jacks for stereo audio and Microphone
Maximum Compatibility Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
Supports Plug-n-play and no driver installation required. Auto-EDID detection to ensure visual workspaces and resolutions are easy to connect to a new system every time and auto-scan feature for quick browsing and system monitoring ESD Protection An ESD protection device protects a circuit used to an Electrostatic discharge (ESD) in order to prevent a malfunction or breakdown of an electronic device
Metal Housing Design Drop resistant and Anti-collision design enhances heat dissipation providing better performance stability and safety
TAA Compliant Completely manufactured in a TAA designated country |
| Maximum Video Resolution | 7680 x 4320 |
| Number of Computers Supported | 4 |
| Number of USB Ports | 10 |

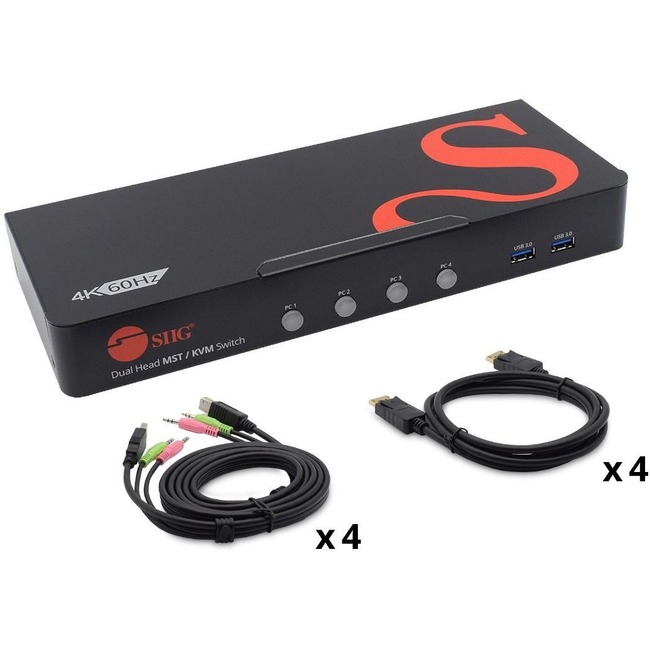

| Package Contents | - 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch
- 4 x DisplayPort Cable
- 4 x 3-in-1 Cable (USB-A 3.2 Gen 1 to USB-B+MIC+audio)
- 1 x DC Power Adapter 12V/2A
- 1 x User Reference Guide
|
| Packaged Quantity | 1 |
| Product Name | 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch |
| Product Type | KVM Switchbox |
| UPC Alternates | 662774045443 |
| Weight (Approximate) | 2.15 lb |
| Width | 4.4" |
