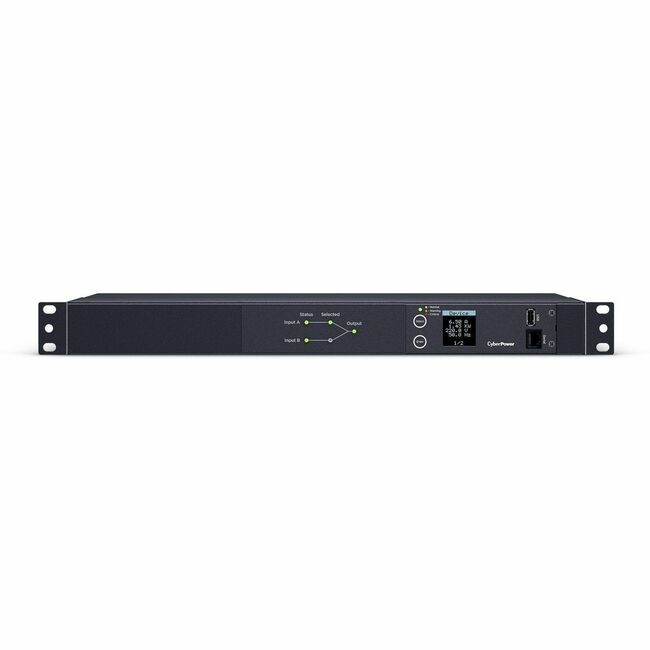

CyberPower Metered ATS PDU PDU24006 10-Outlets PDU - Metered - NEMA L6-20P - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Metered - NEMA L6-20P - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Mounting Orientation | Horizontal |
PDU Type | Metered |
Phase | Single Phase |
Plug/Connector Detail | 2 x NEMA L6-20P |
Receptacle Detail | 8 x IEC 60320 C13 |
Brand Name | CyberPower |
Country of origin | China |
Depth | 8.4" |
Environmental Certification | RoHS |
Environmentally Friendly | Yes |
Height | 1.8" |
Input current | 20 A |
Input voltage | 230 V AC |
Input Voltage Range | 200 V AC - 240 V AC |
Limited Warranty | 3 Year |
Manufacturer | CyberPower Systems Inc |
Manufacturer Part Number | PDU24006 |
Manufacturer Website Address | http://www.cyberpowersystems.com |
Marketing Information | Ensure continued operation of critical devices with the CyberPower PDU24006 Metered ATS PDU. Ideal for data centers and network closets this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds or if power fails the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.
The PDU24006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B) and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color ugradeable firmware and network-grade plugs and outlets. The CyberPower PDU24006 is protected by a three-year limited warranty. |
Mount Type | Rack-mountable |
Plug/Connector Type | NEMA L6-20P |
Product color | Black |
Product Name | Metered ATS PDU PDU24006 10-Outlets PDU |
Product Series | Metered ATS PDU |
Product Type | PDU |
Protection Type | Overload Protection |
Rack Height | 1U |
Receptacle Type | IEC 60320 C13 |
Receptacle Type | IEC 60320 C19 |
UPC Alternates | 649532933945 |
Weight (Approximate) | 11 lb |
Width | 17.1" |
