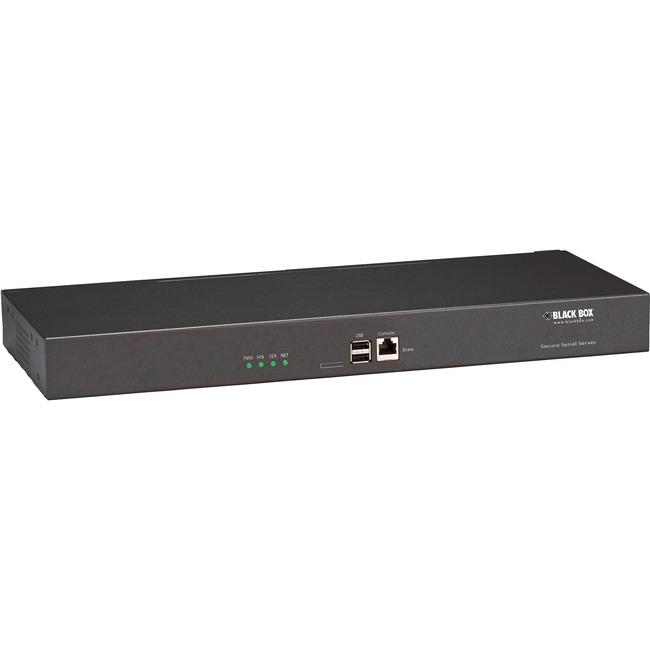

Black Box 16_PT Console Server - Console Server - Cisco Pinout, (16) RS-232 RJ45, (2) 10/100/1000-Mbps RJ45
Console Server - Cisco Pinout, (16) RS-232 RJ45, (2) 10/100/1000-Mbps RJ45
| Number of Serial Ports | 16 |
| Additional Information | General - Approvals CE UL® 1950 TUV C-Tick Security features to support NERC CIP standards FIPS 140-2 validated module Certificate #1051
- Console Management Built-in web terminal SSH direct to consoles optional console keystroke logging alert on cable disconnects text pattern match and more inline power control multiple concurrent sessions
- Memory 32 MB Flash; 4 GB
- Humidity 5 to 90%
- Operating Humidity 5 to 90% non-condensing
- Operating temperature 41 to 122° F (5 to 40° C)
- Power AC socket universal 100-240 VAC
- Power Consumption Less than 30 W
- Security and Authentication SSH; FIPS-140-2 compliant Open SSL Module; Strong ciphers-AES encryption; Cisco-compatible IPsec; AAA-TACACS+ RADIUS Active Directory/OpenLDAP Kerberos with local fallback; Two factor authentication via remote AAA; Configurable stateful firewall; OpenVPN
- Serial Interface RS-232
Product Works With: - Serial Printer Adapter (RJ-45/DB25 F DCE) for Value Line Console Servers (LES1316A-25FC)
- Modem Adapter (RJ-45/DB25 M DCE) for Value Line Console Servers (LES1316A-25MC)
- Dumb Terminal Adapter (RJ-45/DB25 F DTE) for Value Line Console Servers (LES1316A-25FT)
- Dumb Terminal Adapter (RJ-45/DB25 M DTE) for Value Line Console Servers (LES1316A-25MT)
- Dumb Terminal Adapter (RJ-45/DB9 M DTE) for Value Line Console Servers (LES1316A-9MT)
- PC Adapter (RJ-45/DB9 F DTE) for Value Line Console Servers (LES1316A-9FT)
NOTE(s): Optional external environmental or I/O monitoring equipment required. |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 6.9" |
| Device type | Console Server |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 1.8" |
| Limited Warranty | 4 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LES1516A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Tight budgets and sparse IT staffing makes managing remote mission-critical IT network and power devices while meeting enterprise uptime requirements a challenge for IT managers.
The solution is the Secure Serial Server with Cisco pinout. This highly reliable and feature-rich console server simplifies out-of-band management of your network server and power infrastructure in data centers and remote sites.
Use it for easy and affordable out-of-band access to routers switches PDUs firewalls and other serial consoles. The server gives you visibility and control of your network and its physical environment for reliable 24/7 uptime. It provides serial console-port connectivity and supports environmental monitoring power management and monitoring plus remote site storage of off-line logs.
The console server features everything you need to make remote management and fault recovery easy and affordable: an intuitive status monitoring dashboard pro-active alerting vendor-neutral power management and simple secure access to devices. You'll be able to maximize uptime while reducing the hassle and expense of truck rolls and remote site visits. Smart out-of-band management
The Secure Serial Server gives you features that go far beyond traditional out-of-band management devices. Use it to pro-actively detect faults before they become failures. You can monitor and log the system's health and physical environmental conditions such as temperature humidity motion etc. You can also use the server to monitor and control UPSs and PDUs for disruptions surges and power cycling. The intuitive build-in dashboard gives you an overall status-at-a-glance.
Dual ports for built-in redundancy.
In addition to the traditional RS-232 serial console port connections the console server supports direct USB 2.0 connections to one or two Cisco USB console ports (just use its embedded AJAX terminal for accessing the connected serial devices). The dual USB ports enable you to attach peripherals such as storage and USB consoles.
Dual Gigabit Ethernet ports facilitate connections to primary and secondary networks. The server detects any communications failure on the primary port and switches to the second RJ-45 connection automatically. You can remotely cycle power and reboot computers even when their operating system is unresponsive
Extensive environmental and power monitoring
The Secure Serial Server with Cisco Pinout supports extensive environmental monitoring alert and power event-notification functions. Alerts can be sent via e-mail SMS and SNMP traps. Also the console server supports graceful shutdowns ping detects reboots and running of custom scripts when alerts are triggered.
For example you can set it up to power cycle on a managed device when a specific alert event occurs or send multiple notification e-mails when an alert triggers. (The console server uses a Linux operating system with source code access and has a custom development kit.)
Because you can use the console server to manage ports on PDUs UPSs and environmental monitoring devices - and in the process cut power consumption reduce utility bills and lessen environmental impact. It's a great addition to any IT department or company wanting to initiate "clean tech" energy conservation.
The solution for service providers
The console server is also ideal for service providers who need access to client-side devices even those located behind firewalls. Control a wide selection of UPS systems and switched PDUs from different manufacturers. |
| Media Type Supported | Twisted Pair |
| Network Standard | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | 16-Port Secure Serial Server with Cisco Pinout Rackmount brackets and hardware (2) CAT5 cables Cisco connector (DB9 F-to-RJ-45 straight-through and DB9 F-to-RJ-45 crossover) 100-240 VAC internal power supply Quick-start guide |
| Product Name | LES1500 Device Server |
| Product Series | LES1500 |
| Product Type | Device Server |
| Twisted Pair Cable Standard | Category 5 |
| UPC Alternates | 822088130598 |
| Weight (Approximate) | 9 lb |
| Width | 17" |
