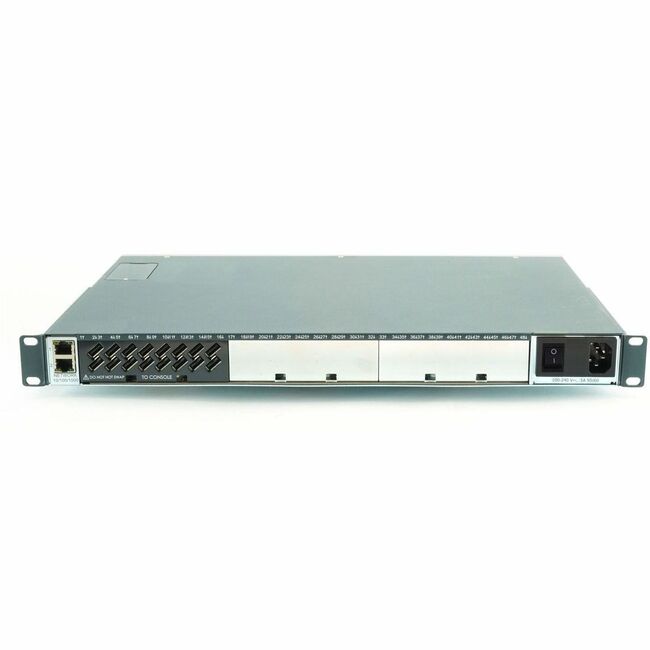

Lantronix Advanced Modular Console Manager

Lantronix Advanced Modular Console Manager

New
Lantronix Advanced Modular Console Manager - Remote Monitoring, Remote Management
0 Review(s) Item: SLC81161201S | By: Lantronix |  3 In Stock
$4,834.29
Subscribe & Save5%
Buy Once $4,834.29
Subscribe & Save$4,592.58
Delivery Ferquency

100% Quality & Money Back Guaranteed!


You may be also interested
Lantronix Advanced Modular Console Manager - Remote Monitoring, Remote Management
Remote Monitoring, Remote Management

Product Specifications

Application/UsageRemote Monitoring
Application/UsageRemote Management
Brand NameLantronix
CompatibilityAccessibility:
  • In-Band (10/100/1000 Base - Ethernet) - Dual Ethernet ports with bonding
  • Out-of-Band (Local terminal Internal Modem or USB Modem)
Security and Authentication:
  • Secure Shell (SSH v1 v2 Public Key)
  • Secure Sockets Layer (SSL v3 TLS v1)
  • Packet filtering (firewall)
  • Per port user permissions
  • Configurable user rights and custom groups
  • Remote authentication: LDAP RADIUS Kerberos TACACS+ Active Directory NIS
  • Local username/password
  • FIPS 140-2 compliant cryptography (Certificate #1878)
Serial Device Port Access:
  • Software reversible device port pins
  • Telnet/SSH to SLC command line
  • Telnet/SSH/RAW-TCP direct to IP address and port number
  • Web Telnet/SSH
  • Multiple concurrent Telnet/SSH sessions
  • Simultaneous access on the same port
  • No inadvertent "breaks" - Sun break-safe
  • Customizable multi-level user menus
  • USB port modem access
  • Automatic port-initiated connections to network host or neighboring port
  • Enable terminal login on any device port
  • SD card and USB
Data Capture and Notification:
  • Port buffering - 256 KB per port
  • Port logging to local files syslog USB thumb drive SD card and NFS share
  • NFS files (simultaneous)
  • System event logs
  • Console event notification via email
  • Event string recognition (RegExp)
Management:
  • Front panel keypad and LCD display for network setup
  • Quick setup and configuration web interface (SSL)
  • CLI setup script
  • Command line interface (Telnet SSH Web Telnet/SSH or direct serial)
  • SNMP (MIB II) compatible-v1 v2 v3 custom MIB's
  • Integrated power management support-Lantronix SLP® and Server Technology PDU
  • Integrated support for Sensorsoft devices
  • Diagnostics and port status counters
    • Performance monitoring utility
    • Packet generation utility
    • Network trace utility
    • Configuration audit log
  • Active user list display port monitoring and timeout
  • Local subnet search for other SLC's
  • Maximum of 352 concurrent users and maximum 10 users per device port at 9600 baud rate (typical)
Additional Protocols Supported:
  • DHCP and BOOTP for dynamic IP address assignment
  • NTP for time synchronization
  • FTP TFTP SFTP SCP client for file transfers
  • DNS for text-to-IP address name resolution
  • SSH SSL Telnet and UDP PPP with PAP/CHAP NFS and CIFS for connections in and out of the SLC
  • IPsec/VPN
  • RIP and RIPv2
Interfaces:
  • Network: Dual 10/100/1000 Base-T RJ45 Ethernet
  • Devices: 8 16 32 48 Serial 300 to 230400 bps
  • Console: RS-232 (RJ45) 300 to 230400 bps
  • USB 2.0 High Speed Full Speed Low Speed
  • SD card slot: SD and SDHC
Operating System: Embedded Linux

Certification: FCC Part 15 CE (EN55022 EN55024 EN60950) CSA VCCI UL/CUL C-Tick CB Scheme NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197 IPv6 Ready FIPS 140-2
Country of originChina
Depth12"
Form factorRack Mount
Height1.7"
Limited Warranty3 Year
ManufacturerLantronix Inc
Manufacturer Part NumberSLC81161201S
Manufacturer Website Addresshttp://www.lantronix.com
Marketing InformationFuture Proof Your Secure Out-Of-Band Management Solution

The Lantronix SLC 8000 advanced console manager is the industry's first modular console server that provides secure remote access to IT equipment while reducing deployment costs and time.

Did You Know?

Like modern laptops and computing devices modern IT equipment vendors are providing USB console ports as an extension or a replacement of RS-232. The Lantronix SLC 8000 allows you to make that transition at your own pace.

Centrally Monitor Manage and Troubleshoot

Designed for system administrators quality and test engineers the SLC 8000 provides easy secure administration and management of IT equipment from anywhere and at any time. Users can access the SLC 8000 device ports via Telnet/SSH or a web browser-based console client without any proprietary software. Any IT asset that provides console or serial port management services can be managed remotely and locally with the same interface and capabilities. The SLC 8000 enables users to leverage the command line interface of most IT equipment for reconfiguring rebooting and reloading firmware from a single point of contact. This can be done over an in-band network with dual Gigabit Ethernet connections for both public and management networks or through out-of-band connections including dial-up (optional internal modem sold separately) and cellular connectivity (PremierWave® XC HSPA+ intelligent gateway sold separately). Users can securely access and control a wide variety of IT and network equipment including Linux Unix or Windows® servers routers switches firewalls PBXs UPSs and even building access devices through their serial ports.

Modular Design

The modular design of SLC 8000 allows users to keep the main unit and simply add or swap modules to expand the number of device ports upgrade from a single power supply to dual and easily introduce new serial interfaces such as USB to support a combination of existing and new IT equipment that are connected. This reduces the time required to develop and deploy new services and this flexibility minimizes capital expenditures while offering easy scalability and upgrades.

More from the Manufacturer

Marketing InformationFuture Proof Your Secure Out-Of-Band Management Solution

The Lantronix SLC 8000 advanced console manager is the industry's first modular console server that provides secure remote access to IT equipment while reducing deployment costs and time.

Did You Know?

Like modern laptops and computing devices modern IT equipment vendors are providing USB console ports as an extension or a replacement of RS-232. The Lantronix SLC 8000 allows you to make that transition at your own pace.

Centrally Monitor Manage and Troubleshoot

Designed for system administrators quality and test engineers the SLC 8000 provides easy secure administration and management of IT equipment from anywhere and at any time. Users can access the SLC 8000 device ports via Telnet/SSH or a web browser-based console client without any proprietary software. Any IT asset that provides console or serial port management services can be managed remotely and locally with the same interface and capabilities. The SLC 8000 enables users to leverage the command line interface of most IT equipment for reconfiguring rebooting and reloading firmware from a single point of contact. This can be done over an in-band network with dual Gigabit Ethernet connections for both public and management networks or through out-of-band connections including dial-up (optional internal modem sold separately) and cellular connectivity (PremierWave® XC HSPA+ intelligent gateway sold separately). Users can securely access and control a wide variety of IT and network equipment including Linux Unix or Windows® servers routers switches firewalls PBXs UPSs and even building access devices through their serial ports.

Modular Design

The modular design of SLC 8000 allows users to keep the main unit and simply add or swap modules to expand the number of device ports upgrade from a single power supply to dual and easily introduce new serial interfaces such as USB to support a combination of existing and new IT equipment that are connected. This reduces the time required to develop and deploy new services and this flexibility minimizes capital expenditures while offering easy scalability and upgrades.

More from the Manufacturer

Product ModelSLC 8000
Product NameAdvanced Modular Console Manager
Product SeriesSLC
Product TypeInfrastructure Management Equipment
UPC Alternates783384236707
Weight (Approximate)11.10 lb
Width17.2"
