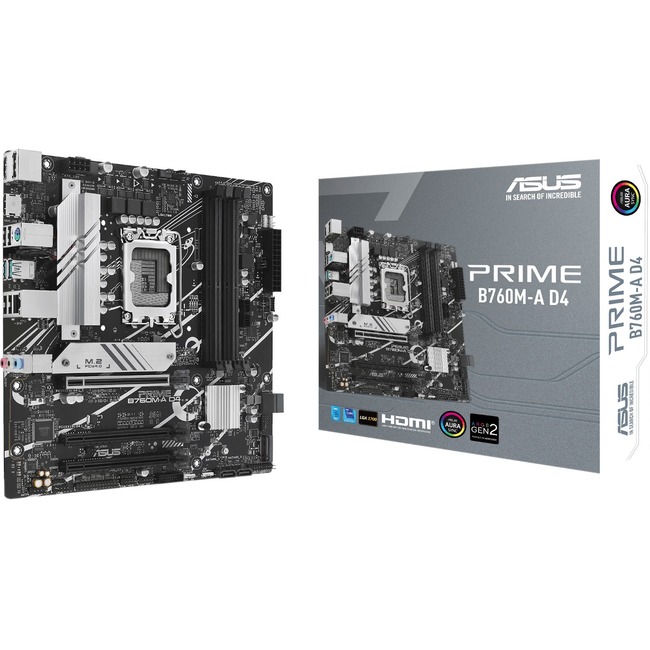

Asus Prime B760M-A D4 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4400 MHz |
| Number of M.2 Interfaces | 2 |
| Number of Memory Slots | 4 |
| Number of Total Expansion Slots | 3 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 4.0 |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Celeron |
| S/PDIF | Yes |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Form factor | Micro ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIMEB760M-AD4 |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design comprehensive cooling solutions and intelligent tuning options PRIME B760M-A D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system enabling performance tweaks to perfectly match the way you work to maximize productivity. Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system it offers intelligently simplified options for newcomers to PC DIY as well as more comprehensive features for seasoned veterans. All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit darken Aura lighting and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. COOLING
PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and these removable captive screws help reduce risk of drops or loss during heatsink removal. PERFORMANCE
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity so your system will be ready for action with stable power intuitive cooling and flexible data transfer options. Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A D4 is geared to cater to the demands of these high-core-count CPUs. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents | - PRIME B760M-A D4 Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x Screw package for M.2 SSD
- 1 x User guide
|
| Product Line | Prime |
| Product Model | B760M-A D4 |
| Product Name | PRIME B760M-A D4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 5 |
| Total Number of USB Ports | 6 |
| Width | 9.6" |
