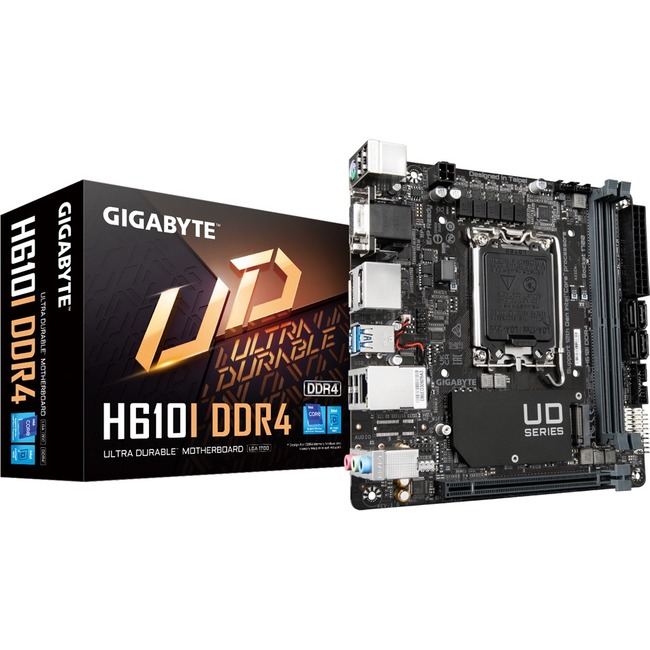

Gigabyte Ultra Durable H610I DDR4 Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Mini ITX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 3000 MHz |
| Number of Memory Slots | 2 |
| Number of SATA Interfaces | 4 |
| Onboard Video | CPU Dependent Video |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core i5 |
| Total Processor Supported | 1 |
| Audio Channels | 7.1 |
| Brand Name | Gigabyte |
| Controller Type | Serial ATA/600 |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | ErP Ready |
| Environmental Certification | China RoHS |
| Environmentally Friendly | Yes |
| Form factor | Mini ITX |
| Limited Warranty | 3 Year |
| Manufacturer | GIGABYTE Technology Inc |
| Manufacturer Part Number | H610I DDR4 |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design PCIe 4.0 Design Gen3 x4 M.2 Intel® GbE with cFosSpeed Anti-Sulfur Resistor Smart Fan 6 - Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center Simple and Easy Use
- Anti-Sulfur Resistors Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading. - 4+1+1 Phases DrMOS.
- Solid capacitors to improve transient response and minimize oscillation.
- Solid Pin CPU Power Connector.
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 24pin & ATX 12V 4pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages - Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
BIOS The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents | - Ultra Durable H610M H DDR4 (rev. 1.0) rev. 1.1 Desktop Motherboard
- Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
|
| Product Line | Ultra Durable |
| Product Name | Ultra Durable H610I DDR4 (rev. 1.0) rev. 1.1 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Total Number of USB Ports | 6 |
| UPC Alternates | 889523031490 |
| Width | 6.7" |
