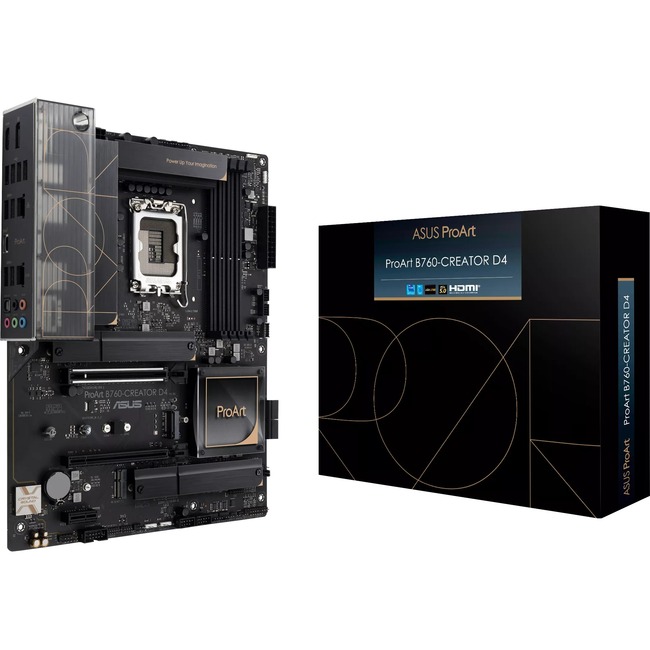

Asus ProArt B760-CREATOR D4 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX
| $236.32 |
- Core processors supported for faster, dependable performance and better access to data and information
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- RAID supported levels provide data reliability and fault tolerance
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Thunderbolt host interface lets you move data between your devices and your computer with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
| Buy Once $236.32 | |||
| Subscribe & Save$224.50 | |||
| Delivery Ferquency |
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Product Specifications
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Number of Memory Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Number of Total Expansion Slots | 3 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 3.0 |
| Processor Generation Supported | 13th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PROARTB760-CREATORD4 |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design and its comprehensive connectivity includes three M.2 slots 2.5 Gb and 1 Gb Ethernet a USB 3.2 Gen 2x2 Type-C® front-panel connector and a ThunderboltTM 4 header. Comprehensive Connectivity | PCIe 5.0 for graphics cards The 13th Gen Intel processors offer PCIe 5.0 support which offers twice the data transfer speed of PCIe 4.0 making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions. Front USB3.2 Gen 2x2 Type-C® A full complement of USB ports including a front-panel USB 3.2 Gen 2x2 Type-C® connector that provides data transfer speeds of up to 20 Gbps supports high-end rigs loaded with peripherals. Thunderbolt™ / USB4® support The ProArt B760-Creator D4 features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally this card has a daisy-chain function for multiscreen connections and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices. Dual Ethernet 2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS) allowing for improved data organization and security. M.2 Slot (Key E) The ProArt B760-Creator D4 features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules PCIe 4.0 M.2 Storage The ProArt B760-Creator D4 features three onboard M.2 slots two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface enabling quicker boot-up and app load times with operating system or application drives. Robust power design | 12+1 teamed power stages Rated for 50 amps and combining high-side and low-side MOSFETs and drivers into a single package these stages deliver power and efficiency tailored for the demands of the latest 13th & 12th Gen Intel Core processors. Chokes & capacitors Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures providing a higher level of performance than the industry standard. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents |
|
| Product Line | ProArt |
| Product Model | B760-CREATOR D4 |
| Product Name | ProArt B760-CREATOR D4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 5 |
| Total Number of USB Ports | 9 |
| UPC Alternates | 197105017856 |
| Width | 12" |
