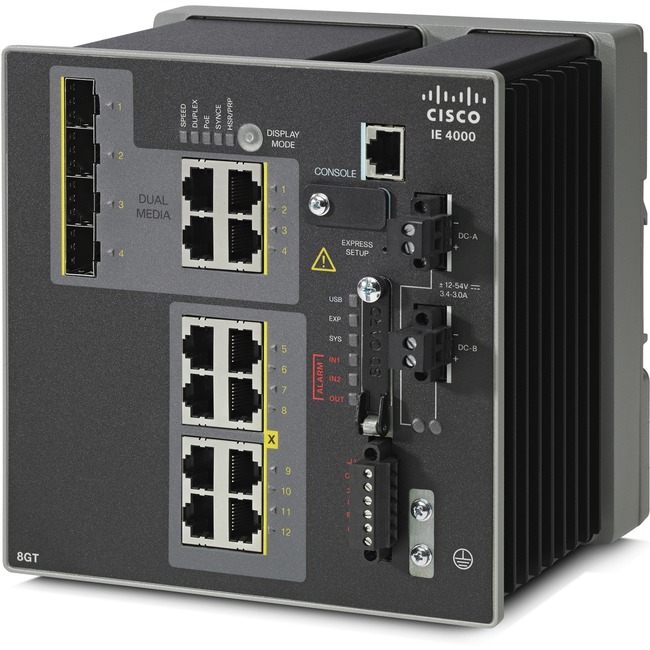

Cisco IE-4000-8GT4G-E Layer 3 Switch

• TAA Compliant
• CE

• FCC 47 CFR Part 15 Class A
• EN 55022A Class A
• VCCI Class A
• AS/NZS CISPR 22 Class A
• CISPR 11 Class A
• CISPR 22 Class A
• ICES 003 Class A
• CNS13438 Class A
• KN22

• EN55024
• CISPR 24
• AS/NZS CISPR 24
• KN24
• EN 61000-4-2 Electro Static Discharge
• EN 61000-4-3 Radiated RF
• EN 61000-4-4 Electromagnetic Fast Transients
• EN 61000-4-5 Surge
• EN 61000-4-6 Conducted RF
• EN 61000-4-8 Power Frequency Magnetic Field
• EN 61000-4-9 Pulse Magnetic Field
• EN 61000-4-11 AC Power Voltage
• EN 61000-4-18 Damped Oscillatory Wave
• EN-61000-4-29 DC Voltage Dips

• EN 61000-6-1 Light Industrial
• EN 61000-6-2 Industrial
• EN 61000-6-4 Industrial
• EN 61326 Industrial Control
• EN 61131-2 Programmable Controllers
• IEEE 1613 Electric Power Stations Communications Networking
• IEC 61850-3 Electric Substations Communications Networking
• EN50155 Railway - Electronic Equipment on Rolling Stock (EMC ENV Mech)
• EN50121-4 Railway - Signaling and Telecommunications Apparatus
• EN50121-3-2 Railway - Apparatus for Rolling Stock
• ODVA Industrial EtherNet/IP
• PROFINET conformance B
• IP30 (per EN60529)

• UL/CSA 60950-1
• EN 60950-1
• CB to IEC 60950-1 with all country deviations
• NOM to NOM-019-SCFI (through partners and distributor)

• UL 508
• CSA C22.2 No 142

• ANSI/ISA 12.12.01 CSA C22.2 No 213
• IEC 60079-0 -15 IECEx test report
• EN 60079-0 -15 ATEX certification (Class I Zone 2)

• IEC 60068-2-27 (operational shock 50G 11ms Half Sine)
• IEC 60068-2-27 (Non-Operational Shock 65-80G 9ms Trapezoidal)
• IEC 60068-2-6 IEC 60068-2-64 EN 61373 (Operational Vibration)
• IEC 60068-2-6 IEC 60068-2-64 EN 61373 (Non-operational Vibration)

• ISO 9223: Corrosion
• class C3-Medium
• class C4-High
• EN 60068-2-52 (Salt Fog)
• EN 60068-2-60 (Flowing Mixed Gas)

• 802.1D MAC Bridges STP
• 802.1p Layer2 COS prioritization
• 802.1q VLAN
• 802.1s Multiple Spanning-Trees
• 802.1w Rapid Spanning-Tree
• 802.1x Port Access Authentication
• 802.1AB LLDP
• 802.3ad Link Aggregation (LACP)
• 802.3af Power over Ethernet provides up to 15.4W DC power to each end device
• 802.3at Power over Ethernet provides up to 25.5W DC power to each end device
• 802.3af Power over Ethernet
• 802.3at Power over Ethernet Plus
• 802.3ah 100BASE-X SMF/MMF only
• 802.3x full duplex on 10BASE-T
• 802.3 10BASE-T specification
• 802.3u 100BASE-TX specification
• 802.3ab 1000BASE-T specification
• 802.3z 1000BASE-X specification 1588v2 PTP Precision Time Protocol

The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required including factory automation energy and process control intelligent transportation systems (ITS) oil and gas field sites city surveillance programs and mining. With improved overall performance greater bandwidth a richer feature set and enhanced hardware the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches such as the Cisco IE 2000 and IE 3000.

The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security data video and voice services over industrial networks.
