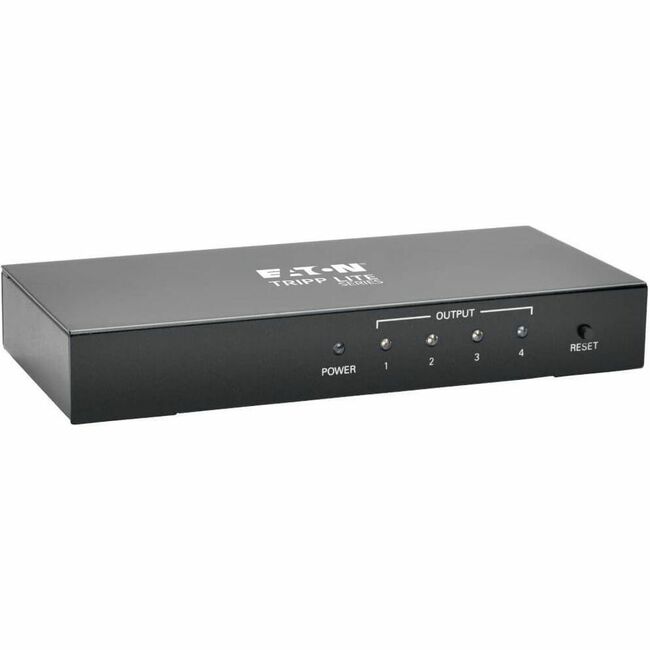

Tripp Lite 4-Port 4K HDMI Video Splitter Ultra-HD 4K x 2K w/ Audio 3840x2160 @ 24/30Hz

• Simultaneously transmit the video and audio from an HDMI source to multiple HDMI monitors
• Supports Full 3D and video resolutions up to UHD 4Kx2K 3840 x 2160 (24Hz and 30Hz)
• Supports 36-bit Deep Color (12-bits per channel)
• Supports DTS-HD Dolby True HD Dolby Digital Plus and LPCM 7.1 Channel Surround Sound audio
• Supports video amplifier bandwidth of 340MHz / 3.4Gbps per channel (10.2Gbps total)
• HDCP and EDID compatible
• Plug and play; no software or drivers required
• Supports Lip Sync pass-through
• Supports xvYCC and x.vColor
• Supports the use of DVI sources and displays with the use of an optional DVI to HDMI adapter (sold separately)
• Supports a maximum distance of 16.4 ft. (5 m) from source to splitter and 23 ft. (7 m) from splitter to display for a total of up to 39.4 ft. (12 m)

1 x 4 HDMI Splitter Transmits 4K Audio/Video to 4 HDMI Displays at the Same Time

Ideal for displaying digital signage in classrooms healthcare facilities churches offices restaurants bars and trade shows this Ultra HD HDMI splitter is quick and easy to install. It connects to an HDMI source device such as a computer media server cable box/DVR or Blu-ray player and transmits an audio/video signal to four HDMI monitors projectors or televisions simultaneously. You can daisy-chain up to three levels of splitters which expands the total number of connected displays to 256.Note: The B118-004-UHD is an HDMI Splitter it sends the same image to all connected displays. If you would like to extend an image over multiple displays you will need an MST hub like the B156-002-HD-V2.

Supports Ultra High Definition Signals up to 39 ft.

Using standard 28 AWG HDMI cabling the B118-004-UHD Ultra HD HDMI splitter distributes a 4K x 2K audio/video signal up to 39 feet. Place your HDMI source up to 16.4 feet from the splitter and the splitter up to 23 feet from an HDMI display for a maximum distance of 39.4 feet between source and display.

Maintains 4K x 2K Video Resolutions and Rich Stereo Sound

The B118-004-UHD 1 x 4 HDMI splitter maintains full 3D and video resolutions up to 3840 x 2160 at 30 Hz and 36-bit Deep Color (12 bits per channel). It also supports a wide range of audio formats including DTS-HD Dolby TrueHD Dolby Digital Plus and LPCM 7.1-channel surround sound.

Also Works with DVI Sources and Displays

You can also use legacy DVI-D single-link sources and displays with the B118-004-UHD to avoid an expensive upgrade to HDMI equipment. Connect DVI-D components using HDMI to DVI adapters such as Tripp Lite's P566-Series. You will be able to transmit video only and resolutions will be limited to those supported by the adapter.

Ready to Use Right Out of the Package

The plug-and-play splitter comes ready to connect right out of the package and requires no additional software or drivers. Its durable metal housing is designed to last a long time and fit seamlessly into any home or office application.

• 4-Port 4K HDMI Splitter for Ultra-HD (4Kx2K) Video and Audio - 3840x2160
• External Power Supply (Input: 100-240V 50/60Hz 1.5A Output: 5V 3A)
• Owner's Manual
