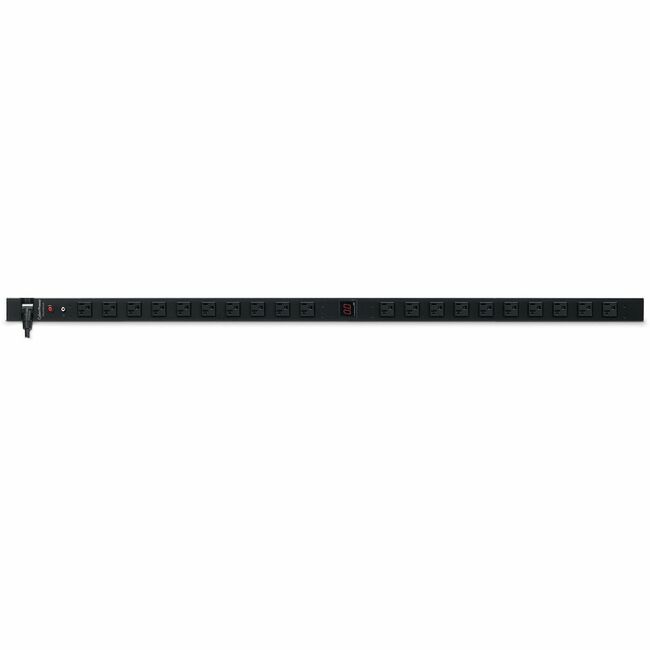

CyberPower PDU20MV20F 100 - 125 VAC 20A Metered PDU
| $181.59 Retail $229.95 |
- Metered PDU
- 20 NEMA 5-20R (20 Front) output receptacles
- 120V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
- 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing
| Buy Once $181.59 | |||
| Subscribe & Save$172.51 | |||
| Delivery Ferquency |
20 Outlets, 10 ft, NEMA 5-20P, Vertical, 0U, Lifetime Warranty
Product Specifications
| Mounting Orientation | Vertical |
| PDU Type | Metered |
| Phase | Single Phase |
| Receptacle Detail | 20 x NEMA 5-20R |
| Brand Name | CyberPower |
| Country of origin | China |
| Depth | 2.3" |
| Energy Star | No |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 48" |
| Input current | 20 A |
| Input voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Limited Warranty | Lifetime |
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | PDU20MV20F |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | The CyberPower PDU20MV20F a 20-outlet (front) 0U vertical rackmount metered power distribution unit (PDU) provides 100 - 125 V 20A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA 5-20P plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications the PDU20MV20F has rugged industrial-grade metal housing and a 10-foot AC power cord. It supports vertical horizontal and wall mount installation. The PDU20MV20F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. Power DistributionDelivers AC power to servers equipment and connected devices via a power distribution unit. Switch-Free Design Safeguards against accidental power shutdown. Network-Grade Plugs and Outlets Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers equipment and connected devices. Long Input Power Cord Reaches distant power sources allowing the PDU to be placed where it's needed. Cord Retention Tray Secures power cords keeping them organized and accessible. Helps cords stay plugged in. Configurable Mounting Brackets Allow for installation of the PDU in the following configurations: 0U (vertical under counter and wall mount) 1U (horizontal vertical under counter and wall mount) and 2U (horizontal and wall mount). Durable Metal Housing Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product. Limited Lifetime Warranty Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details. What's In The Box PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card |
| Mount Type | Rack-mountable |
| Package Contents |
|
| Plug/Connector Type | NEMA 5-20P |
| Product Name | PDU20MV20F 20-Outlets PDU |
| Product Series | Metered PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Receptacle Type | NEMA 5-20R |
| UPC Alternates | 012303487204 014445007470 649532901159 |
| Weight (Approximate) | 9 lb |
| Width | 1.8" |
