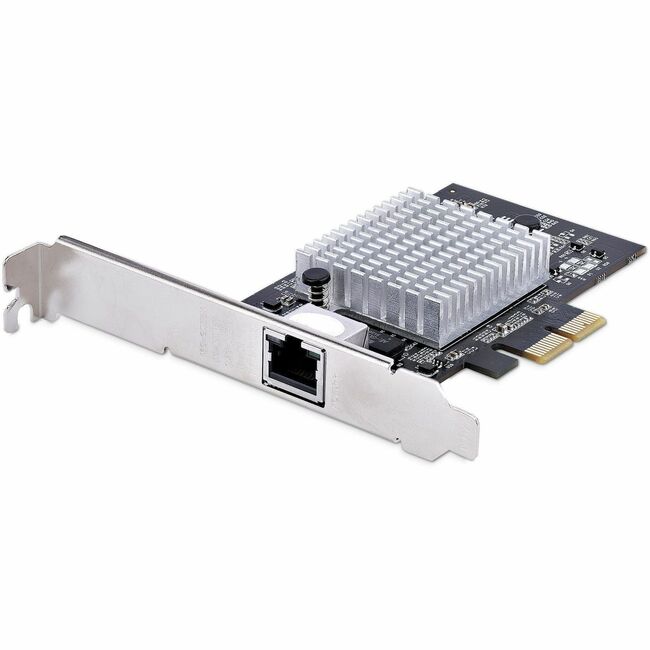

StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, PCIe Ethernet Card w/Jumbo Frame, NIC/LAN Interface Card
| $172.49 Retail $219.99 |
- NETWORK ADAPTER FOR PC: This 10 GbE capable PCIe network adapter card provides high-speed data transfer rates for desktops/servers leveraging an existing Cat5e, Cat6, or Cat6a cabling infrastructure
- SPECIFICATIONS: Multiple Speeds NIC 10/5/2.5/1Gbps and 100/10Mbps - 10GBASE-T and NBASE-T - 1x RJ45 Port - PCIe 3.0 x2 - Marvell AQC113CS - 16K Jumbo Frame - VLAN - PXE Boot - EEE - Full-Height and Low-Profile Brackets Included
- COMPATIBILITY: The network card for PC is compatible with Windows, Windows Server, and Linux - The variable speed options and included low profile bracket widen the compatibility of the PCIe network card with current and legacy devices
- MULTI-GIGABIT CONNECTIVITY: The network interface card auto negotiates speed and supports 2.5/5 Gbps network speeds on Cat5e cabling, and 10 Gbps on Cat6/6a - The Ethernet network card supports IP/TCP/UDP checksum offload, secure boot, PTP, and AVB
- THE IT PRO'S CHOICE: Designed and built for
| Buy Once $172.49 | |||
| Subscribe & Save$163.87 | |||
| Delivery Ferquency |
This 10G capable PCIe network adapter card leverages existing Cat5e/6/6a cabling - Six Speeds NIC 10G/5G/2.5G/1G/100M/10M; Marvell AQC113CS; PCIe 3.0 x2; 16K Jumbo; PXE Boot; AVB; PTP - The 10Gb network adapter card is compatible with Windows/Linux
Product Specifications
| Bracket Height | Low Profile |
| Chipset Manufacturer | Marvell |
| Chipset Model | AQC113CS |
| Country of origin | Malaysia |
| Device Supported | Computer/Server |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Plug-in Card |
| Height | 0.8" |
| Host interface | PCI Express 3.0 x2 |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST10GSPEXNB2 |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Aruba®. Increased Network Speeds This PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs online storage/backup and when streaming online content. NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling. Enhance Existing Hardware The Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows Windows Server and Linux. Take advantage of advanced features such as Audio-Video Bridging (AVB) VLAN tagging 16 K jumbo frame full-duplex secure boot and PXE. The PCI Express 10G NIC is backed for 2-years including free lifetime 24/5 multi-lingual technical assistance. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-T |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product color | Black |
| Product Type | 10Gigabit Ethernet Card |
| UPC Alternates | 065030897549 |
| Weight (Approximate) | 2.50 oz |
| Width | 4.2" |
