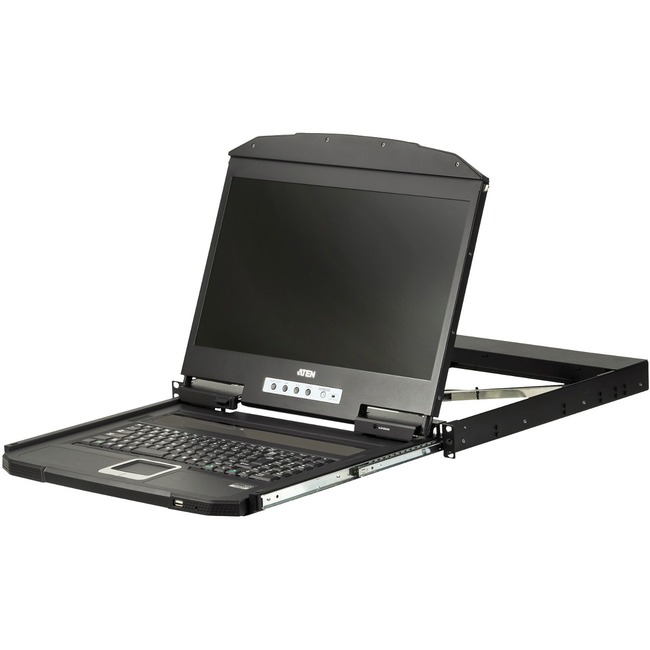

Aten 1U Ultra Short Depth Single Rail WideScreen LCD Console (USB / VGA)-TAA Compliant
| $963.67 Retail $1,372.00 |
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- Supports VGA video input; supports an external console with USB / VGA connectors
- 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
- External console supports input video resolutions up to 1920 x 1200 @ 60Hz
- Audio support for connecting speakers
- Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
- Console selection via hotkey
| Buy Once $963.67 | |||
| Subscribe & Save$915.49 | |||
| Delivery Ferquency |
1 Computer(s) - 18.5" LED - 1366 x 768 - 3 x USB - 1 x VGA - 1 - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - Metal, Plastic
Product Specifications
| KVM Switch | No |
| Product Material | Plastic |
| Product Material | Metal |
| Brand Name | ATEN |
| Certifications & Standards |
|
| Country of origin | Taiwan |
| Depth | 18.8" |
| Display Screen Type | LED |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Keyboard | Yes |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | CL3100NX |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms. The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit's front panel while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers. |
| Marketing Information | The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms. The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit's front panel while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers. |
| Number of USB Ports | 3 |
| Number of VGA Ports | 1 |
| Package Contents |
|
| Pointing Device Type | TouchPad |
| Power consumption | 14.10 W |
| Product Name | CL3100 LCD KVM Console with Standard Rack Mount Kit |
| Product Type | LCD Rack Console |
| Rack Height | 1U |
| Screen Resolution | 1366 x 768 |
| Screen Size | 18.5" |
| UPC Alternates | 672792008771 |
| Weight (Approximate) | 20 lb |
| Width | 18.9" |
