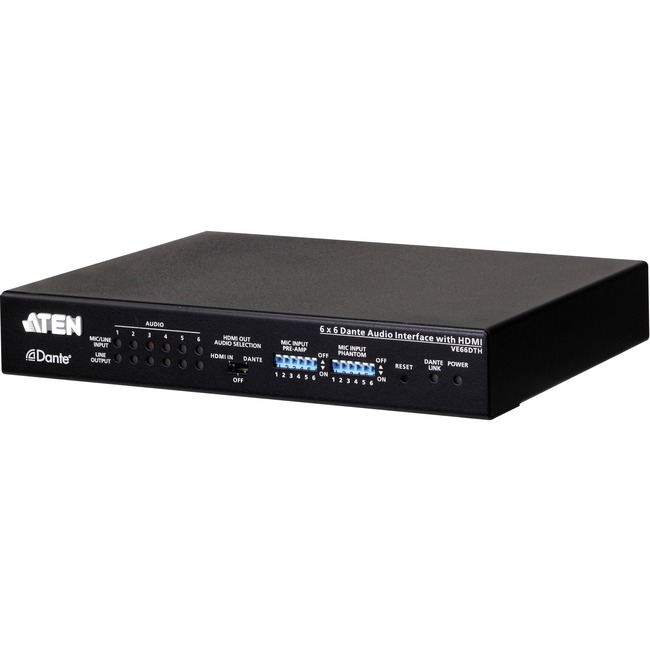

ATEN 6 x 6 Dante Audio Interface with HDMI - 6 Input Device - 6 Output Device - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 4096 x 2160 - Twisted Pair
6 Input Device - 6 Output Device - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 4096 x 2160 - Twisted Pair
| Number of Output Devices Supported | 6 |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Graphics Modes | 4K UHD |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VE66DTH |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | ATEN VE66DTH is a Dante-enabled six-input/six-output Audio Interface with HDMI. Using Dante™ - the most popular audio networking solution created by Audinate the VE66DTH is capable of delivering uncompressed close-to-zero latency digital audio signals across your standard IP network. The VE66DTH transmits and receives up to 6-channel of audio inputs and outputs via a Dante network - the audio inputs can support not only the line input but also the dynamic and condenser microphones at the same time. Additionally the device can also provide condenser microphones with 48V Phantom power supply. With its built-in PoE (Power over Ethernet) the VE66DTH can be powered by a compatible PSE device through Ethernet cable. Moreover the VE66DTH provides flexible audio capability with audio de-embedding and embedding. It can de-embed HDMI stereo audio signals to the Dante networking system and embed Dante audio signals into the HDMI output. The VE66DTH is tailor-made to a wide range of environments such as conference centers concert halls entertainment facilities or wherever that requires implantation of Dante-based professional audio devices for extended and flexible networked AV applications. Users of the VE66DTH can benefit from improved system performance reduction in cabling and more to installations of all sizes. |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - 6 x 6 Dante Audio Interface with HDMI
- 6 x 5-Pole Terminal Blocks
- 4 x Foot Pads
- 1 x Mounting Kit
- 1 x Power Adapter
- 1 x User Instructions
|
| Product Line | Dante |
| Product Name | 6 x 6 Dante Audio Interface with HDMI |
| Product Type | Video Extender Transceiver |
| UPC Alternates | 672792011573 |
