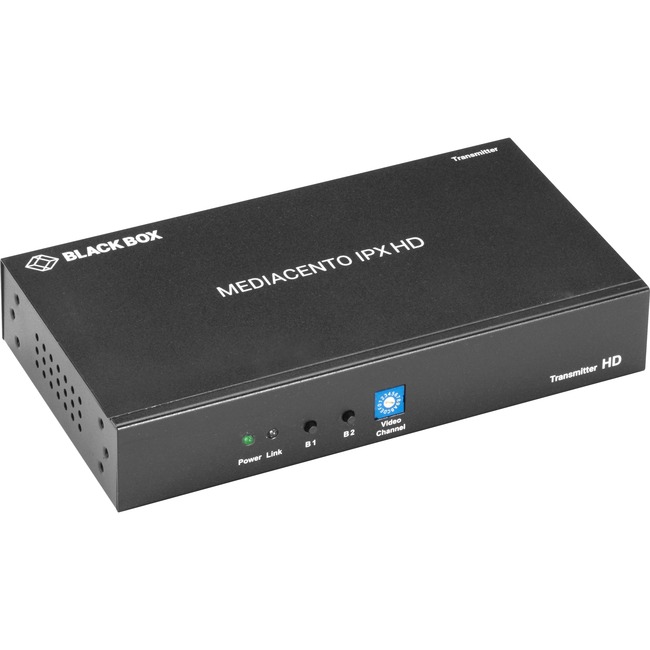

Black Box MediaCento IPX HD Extender Transmitter - HDMI-Over-IP
| $272.94 Retail $328.25 |
- Supports up to 1080p HD
- Setup units using only the front panel interface, no additional configuration required
- Intercompatible with the MediaCento 4k
- Any source to any screen, over IP
- Extend HDMI video signals over a Gigabit Ethernet network
- Create eye-catching video walls of up to 8x8 displays
- PoE power eliminates external power supplies
- Use with the MediaCento Controller for matrix switching and video wall control
- Maximum latency 2 frames or 33ms
| Buy Once $272.94 | |||
| Subscribe & Save$259.29 | |||
| Delivery Ferquency |
1 Input Device - 328.08 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - Full HD - 1920 x 1080 - Twisted Pair - TAA Compliant
Product Specifications
| Transmitter Depth | 3.86" |
| Transmitter Height | 1.26" |
| Transmitter Weight (Approximate) | 1.04 lb |
| Transmitter Width | 7.09" |
| Brand Name | Black Box |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS 2 |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Graphics Modes | Full HD |
| Limited Warranty | 1 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VX-HDMI-HDIP-TX |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | MediaCento IPX HD is great for:
HDMI HD video over IP This IP-based video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to extend HD HDMI video signals on your Gigabit Ethernet network. In a multicast configuration one transmitter can drive multiple receivers with no extra network load. HD means better video The MediaCento IPX HD supports High Defenition video for great pictures up to 1080p. Plug-and-play setup Whether you choose to utilize existing LAN infrastructure or set up a dedicated video network setup is easy. For a unicast setup simply connect your source your display a network switch and you're ready to go! PoE support for remote powering The MediaCento IPX HD is PoE powered eliminating the need for additional power supplies. Using a PoE network switch completely eliminates the need for external power supplies making installation easier. Create 8x8 video walls For video streaming and multicasting video over a network to a video wall see our LPB2900 Series Gigabit PoE+ Managed Switches (LPB2910A LPB2926A LPB2952A). Signals that go for miles The MediaCento IPX HD Unicast system transmits up to 328 feet (100 m) point to point but goes even further with a network switch added to the mix. Optimal PC-to-screen performance MediaCento features EDID copy function and is HDCP 2.2-compliant. Digital signage and video wall applications:
|
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Product Line | MediaCento |
| Product Name | MediaCento IPX HD Extender Transmitter - HDMI-Over-IP |
| Product Type | Video Extender Transmitter |
| UPC Alternates | 822088131472 993246470570 997251937363 |
