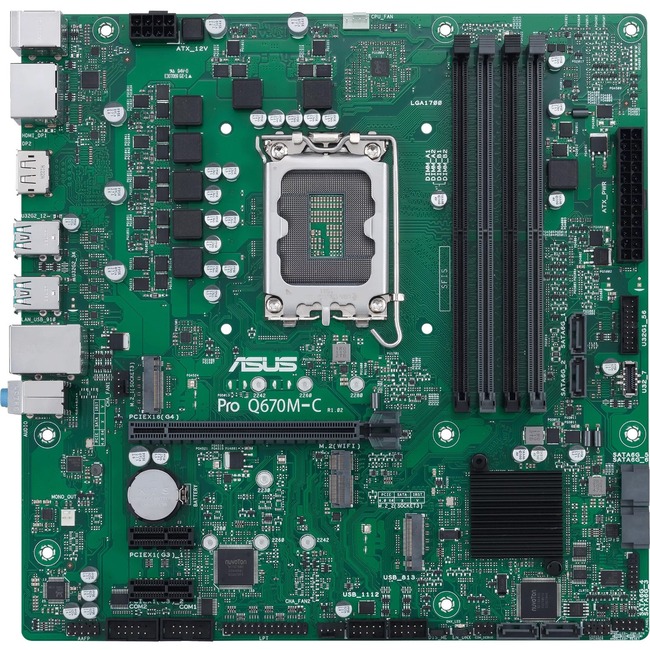

Asus PRO Q670M-C-CSM Desktop Motherboard - Intel Q670 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX - Core i3, Core i5, Pentium, Core i9, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
Core i3, Core i5, Pentium, Core i9, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4800 MHz |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core i3 |
| Processor Supported | Core i9 |
| Processor Supported | Core i5 |
| Processor Supported | Celeron |
| Processor Supported | Pentium |
| Total Number of Onboard USB Ports | 7 |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Micro ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRO Q670M-C-CSM |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Micro-ATX Q670 business motherboard with Intel® vPro support and enhanced security reliability manageability and serviceability - Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
- ASUS CSM program: A stable motherboard supply end-of-life notifications and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: Boot defender with NIST SP 800-193 compliance a self-recovering BIOS and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
PRO
ASUS Pro business motherboards provide enhanced features to smooth your IT operations including comprehensive system protection 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality TCO-optimized solution for your business computing-needs. ASUS Corporate Stable Model ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Product Name | PRO Q670M-C-CSM Desktop Motherboard |
| Product Series | PRO |
| Product Type | Desktop Motherboard |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 5 |
| UPC Alternates | 195553518383 |
| Width | 9.6" |
