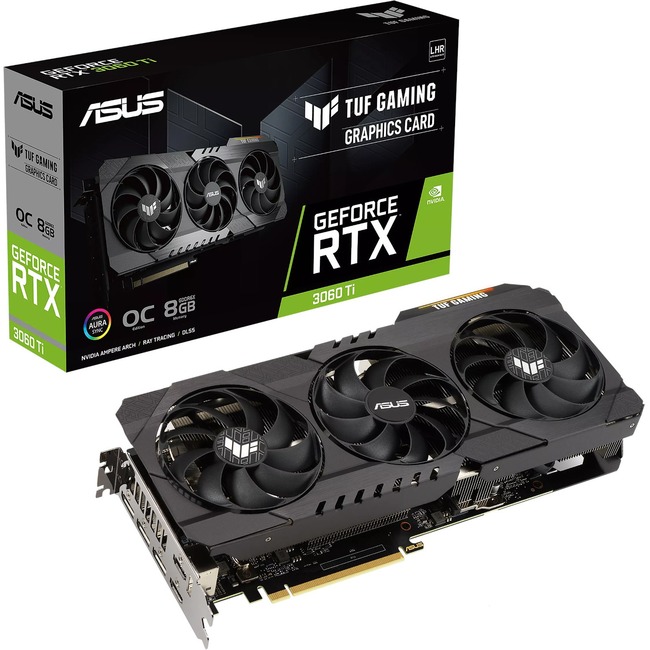

TUF NVIDIA GeForce RTX 3060 TI Graphic Card - 8 GB GDDR6X - 1.79 GHz Boost Clock - 256 bit Bus Width - PCI Express 4.0 - DisplayPort - HDMI 1.79 GHz Boost Clock - 256 bit Bus Width - PCI Express 4.0 - DisplayPort - HDMI
Product Specifications
API Supported
OpenGL 4.6
Bus Width
256 bit
Chipset Line
GeForce
Chipset Manufacturer
NVIDIA
Chipset Model
RTX 3060 TI
Chipset Series
RTX
Cooler Type
Fan Cooler
CUDA Cores
4864
GPU Boost Clock
1.79 GHz
Maximum Digital Display Resolution
7680 x 4320
Number of DisplayPort Outputs
3
Number of Monitors Supported
4
Power Connector
2x 8-pin
Power Supply Wattage
750 W
Slot Space Required
Triple
Brand Name
TUF
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Plug-in Card
Height
2.1"
Host interface
PCI Express 4.0
Length
11.9"
Limited Warranty
36 Month
Manufacturer
ASUS Computer International
Manufacturer Part Number
TUF-RTX3060TI-O8GD6X-GMNG
Manufacturer Website Address
http://usa.asus.com
Marketing Information
TUF Gaming GeForce RTXTM 3060 Ti OC Edition 8GB GDDR6X offers a buffed-up design that delivers chart-topping thermal performance.
NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest most efficient GPUs the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
Military-grade capacitorsand other TUF components enhance durability and performance.
GPU Tweak III provides intuitive performance tweaking thermal controls and system monitoring.
BUILT TUF
The TUF GAMING GeForce RTX™ 3060 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence and a stop mode brings all three fans to a halt at low temps. Beneath independent heatsinks for the GPU and memory keep thermals under tight control. Additional features including TUF components Auto-Extreme Technology a new GPU bracket and a backplate vent make the TUF a proper powerhouse. For builders looking for a new "old faithful" this card has your back.
AXIAL-TECH UPGRADES
TUF Gaming cards leverage our tried-and-true Axial-tech fan design with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
MAXCONTACT
To get heat into the heatsink array efficiently so that it can be whisked away by the powerful Axial-tech fans we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die helping to enhance thermal transfer.
2.7-SLOT DESIGN
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large 2.7-slot footprint. This generation of?TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs.
TUF COMPONENTS
Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally to ensure flawless performance when it counts the cards are subjected to a grueling 144-hour validation trial.
Memory Technology
GDDR6X
Number of HDMI Outputs
2
Package Contents
Gaming RTX 3060 Ti OC Edition 8G GDDR6X Graphic Card
1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup Manual
Platform Supported
PC
Product Model
TUF-RTX3060TI-O8GD6X-GAMING
Product Name
Gaming RTX 3060 Ti OC Edition 8G GDDR6X Graphic Card
Product Type
Graphic Card
Standard Memory
8 GB
Width
5.6"
Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
