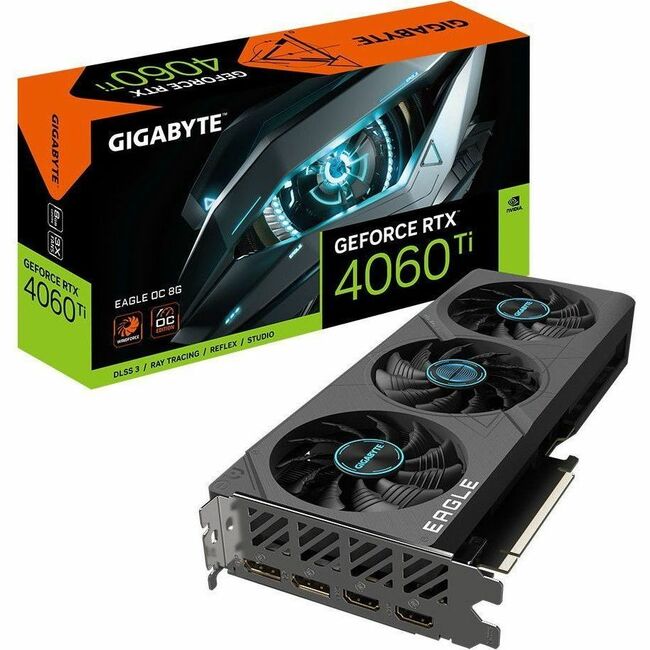

Gigabyte NVIDIA GeForce RTX 4060 Ti Graphic Card - 8 GB GDDR6
| $448.39 |
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (8GB)
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Dual BIOS
- Protection back plate
2.55 GHz Core - 128 bit Bus Width - PCI Express 4.0 - DisplayPort - HDMI
Product Specifications
| API Supported | DirectX 12 Ultimate |
| API Supported | OpenGL 4.6 |
| Bus Width | 128 bit |
| Chipset Line | GeForce |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 4060 Ti |
| Chipset Series | RTX |
| Cooler Type | Fan Cooler |
| CUDA Cores | 4352 |
| GPU Clock | 2.55 GHz |
| Maximum Digital Display Resolution | 7680 x 4320 |
| Number of DisplayPort Outputs | 2 |
| Number of Monitors Supported | 4 |
| Power Connector | 1x 8-pin |
| Power Supply Wattage | 500 W |
| Brand Name | Gigabyte |
| Form factor | Plug-in Card |
| HDMI | Yes |
| Height | 1.6" |
| Host interface | PCI Express 4.0 |
| Length | 10.7" |
| Manufacturer | GIGABYTE Technology Inc |
| Manufacturer Part Number | GVN406TEAGLEOC8GD |
| Manufacturer Website Address | http://www.gigabyte.us |
| Marketing Information | WINDFORCE COOLING SYSTEM The WINDFORCE cooling system features three 80mm unique blade fans alternate spinning 3 composite copper heat pipes directly touch the GPU 3D active fans and Screen cooling which together provide high efficiency heat dissipation. ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase airflow pressure 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling and the fans will remain off when the GPU is in a low load or low power game. UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge and guided smoothly through the 3D stripe curve on the fan surface. GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times close to the life of double ball bearing and is quieter. SCREEN COOLING Extended heatsink allows air to pass through providing better heat dissipation. PROTECTION BACK PLATE The back plate not only provides an aesthetical shape but also enhances the structure of the graphics card to provide complete protection. DUAL BIOS The factory default setting is OC mode which provides users with the best performance. However switching to silent mode will enjoy a quieter experience. BUILT STRONG | ULTRA DURABLE Ultra Durable certified highest-grade metal chokes lower ESR solid capacitors 2oz copper PCB and lower RDS(on) MOSFETs plus over-temperature design to deliver superior performance and longer system life. FRIENDLY PCB DESIGN Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. Power Through The Game GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card. GIGABYTE CONTROL CENTER GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed voltage fan mode and power target in real-time. |
| Memory Technology | GDDR6 |
| Package Contents |
|
| Platform Supported | PC |
| Product Model | GV-N406TEAGLE OC-8GD |
| Product Name | GeForce RTX 4060 Ti EAGLE OC 8G Graphic Card |
| Product Type | Graphic Card |
| Standard Memory | 8 GB |
| UPC Alternates | 889523038000 |
| Width | 4.5" |
