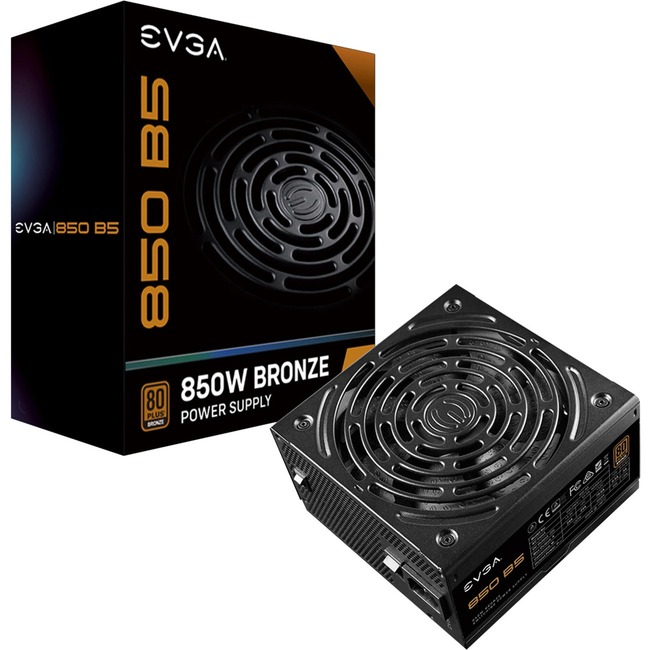

EVGA 850 B5 Power Supply - Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 24 A, 5 V DC @ 24 A, 12 V DC @ 70.8 A, 12 V DC @ 500 mA, 5 V DC @ 3 A Output - 850 W - 1 Fan(s) - 85% Efficiency
Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 24 A, 5 V DC @ 24 A, 12 V DC @ 70.8 A, 12 V DC @ 500 mA, 5 V DC @ 3 A Output - 850 W - 1 Fan(s) - 85% Efficiency
| Specification Compliance | ATX12V/EPS12V |
| Brand Name | EVGA |
| Country of origin | Taiwan |
| Efficiency | 85% |
| Environmental Certification | ErP Lot 3 |
| Environmental Certification | WEEE |
| Environmental Certification | 80 Plus Bronze |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Internal |
| Height | 3.4" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 5 Year |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 220-B5-0850-V1 |
| Manufacturer Website Address | http://www.evga.com |
| Marketing Information | Introducing the EVGA B5 power supplies the latest 80PLUS Certified Bronze power supplies to carry on the EVGA tradition of reliability performance and affordability. The B5 power supplies start with the most important standard for reliability - 100% Japanese Capacitors. Next the B5 power supplies provide maximum flexibility by using a small chassis and a fully modular design. The ultra-quiet 135mm Fluid-Dynamic Bearing fan becomes silent when coupled with EVGA ECO mode to turn off the fan in medium to low loads. Last but not least the B5 power supplies have a full suite of protections and a 5-year limited warranty that you've come to know and expect from EVGA. |
| Number of Fans | 1 |
| Output power | 850 W |
| Output voltage | 5 V DC @ 3 A |
| Output voltage | 5 V DC @ 24 A |
| Output voltage | 12 V DC @ 500 mA |
| Output voltage | 12 V DC @ 70.8 A |
| Output voltage | 3.3 V DC @ 24 A |
| Product Model | 850 B5 |
| Product Name | 850 B5 Power Supply |
| Product Series | B5 |
| Product Type | Power Supply |
| UPC Alternates | 843368064358 |
| Weight (Approximate) | 5 lb |
| Width | 5.9" |
