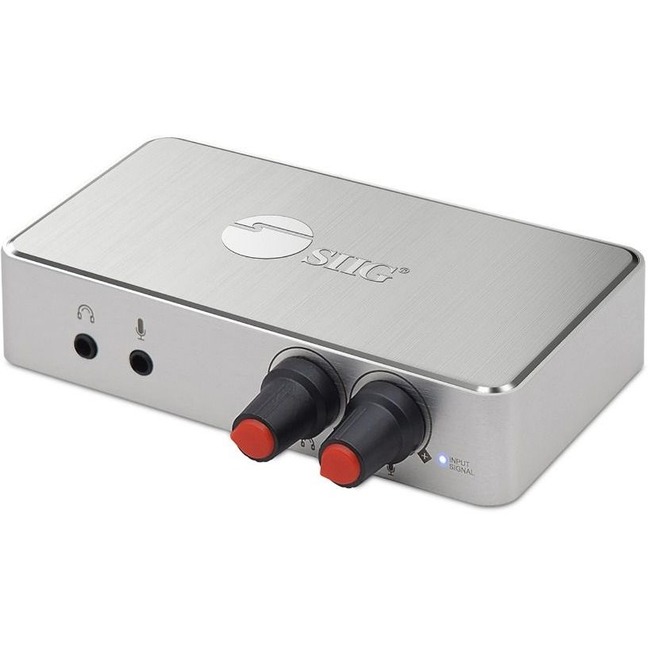

SIIG 4K HDMI Video Capture Box with Volume Control & Loopout - Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant
Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant
| Screen Mode Supported | 4K |
| Brand Name | SIIG |
| Country of origin | Taiwan |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Functions | Video Streaming |
| Functions | Video Capturing |
| Functions | Video Recording |
| Height | 0.9" |
| Length | 4.6" |
| Limited Warranty | 3 Year |
| Manufacturer | SIIG Inc |
| Manufacturer Part Number | CE-H27311-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Overview Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console Media players or Set-top box while simultaneously viewing in 4K@60Hz resolution Volume Control Aluminum Housing TAA compliant
Features Easily capture and record 4K HDMI live video with low latency via a USB-C device and adjust the sound directly with the volume knob 4K UHD Resolution
Supports streaming 4K (3840x2160) @60Hz Ultra high-definition video resolution and recording 4K (3840x2160) @30Hz UHD video resolution ideal for game capture HDR Convert SDR
This 4K HDMI Video Capture Box supports HDR10 to SDR conversion when a monitor/display without HDR or HDMI source with HDR
USB Record
Stream video via USB-C and supports USB Video Class (UVC) 1.0/1.1/1.5 and up to 5Gbps date transfer Auto Downscaling
Detects and configures the video resolution automatically according to the capabilities of the connected monitor Stereo Audio/Control
Supports stereo audio embedded and HDMI audio extractor great for adding voice over to your gameplay. Built-in volume control knob to adjust the microphone/headphone volume Multiple Connectivity Ports
Comes with one HDMI video input port one HDMI video output port one USB-C 3.2 Gen 1 output port (Host) one 3.5mm microphone input port one 3.5mm stereo audio output port and two audio volume knob |
| Maximum resolution | 3840 x 2160 |
| Operating System Supported | Windows 8 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Linux |
| Operating System Supported | Mac OS X 11.0 Big Sur |
| Operating System Supported | Windows 10 |
| Operating System Supported | Mac OS X 11.1 Big Sur |
| Operating System Supported | macOS 10.15 |
| Operating System Supported | Windows 7 |
| Package Contents | - 4K HDMI Video Capture Box with Volume Control & Loopout
- 1 x USB 3.2 Gen 1 Type-C to Type-A Cable 0.98ft (30cm)
- 1 x User Reference Guide
|
| Packaged Quantity | 1 |
| Platform Supported | Mac |
| Platform Supported | PC |
| Product Name | 4K HDMI Video Capture Box with Volume Control & Loopout |
| Product Type | Video Capturing Device |
| UPC Alternates | 662774045009 |
| Weight (Approximate) | 0.44 lb |
| Width | 2.5" |
