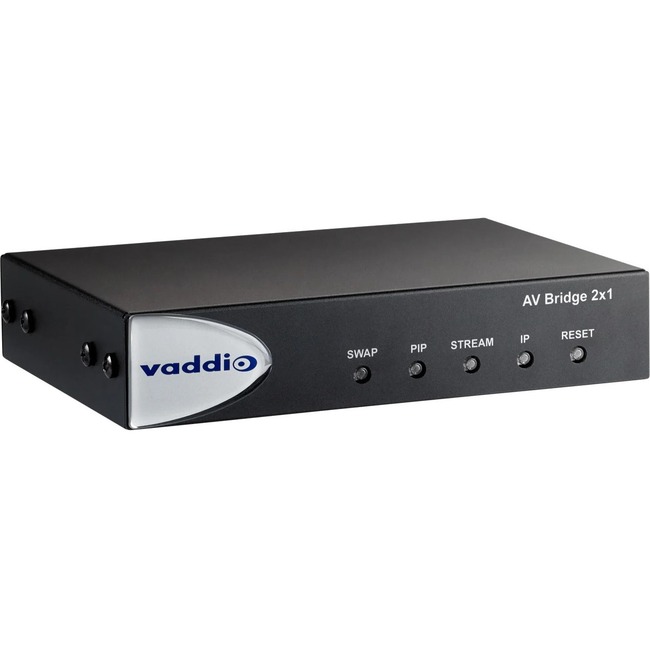

Vaddio AV Bridge 2x1

Ideal for conferencing and lecture capture applications AV Bridge 2x1 combines networked audio and video mixing functionality into a single device.

Key Features:

• Robust two HDMI input AV Bridge
• 4x4 Dante Audio matrix (12x12 cross-point audio matrix)
• Simultaneous 1080p USB 3.0 HDMI and IP Streaming Outputs
• Flexible control options with serial telnet trigger Vaddio Device Controller and web control

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network choose an action like rebooting the device unmute the audio or updating firmware and voilà! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once which saves you a lot of time.

Vaddio's simplest lecture capture device yet! We call our AV Bridge 2x1 the classroom-in-a-box solution because it enables simple distribution production and capture of high-quality networked Dante audio analog audio and two HD video sources.

Two HDMI inputs allow you to connect either two cameras or a camera and PC display on a platform that easily switches between sources and delivers useful picture-in-picture (PIP) video streams. Concurrent 1080p USB 3.0 HDMI and IP streaming allow for flexible video distribution. Use the AV Bridge 2x1 to simultaneously record to a local PC magnify the speaker video through a room projector and stream the lecture to popular online platforms - without the need for special drivers or additional applications.

The AV Bridge 2x1 has robust audio mixing capabilities as well. A 4x4 Dante I/O allows for scalable networked audio to meet the needs of any application. Install the AV Bridge 2x1 in your existing classroom designs by utilizing the 2-channel analog audio I/O and adding in new HD video sources.

Experience worry-free presentations with the automation features built into the AV Bridge 2x1. Connect Vaddio trigger devices like the StepVIEW Mat to recall a library of macros built into the web-based user interface. Control PIP settings video sources camera position presets and more with intuitive API integration for third party applications and control hardware. Available PIP layouts include side by side top bottom and your choice of four corner inset. Store graphic overlays such as a company logo or speaker name to add production quality to everyday events.

The AV Bridge 2x1 is excellent for videoconferencing applications. Share more of the conference room when in video calls. Switch between a view of the boardroom table and the action at the whiteboard without missing a beat. Participate with crystal clear audio through built-in echo cancellation ensuring both sides of the conversation are heard without annoying feedback issues common with inexpensive audio devices.

The AV Bridge 2x1 is the must-have device you need for simple reliable multi-camera installations.

This Package Includes:

• AV Bridge 2x1
• Quick-Start Guide
• PoE+ Midspan Power Injector with AC cord set(s)
• 3 ft (0.9 m) cat-5 cable black
• 6 ft (1.8 m) USB 3.0 cable type A to B
• 6 qty 3-position phoenix-style connectors
• Half-Rack mounting kit (for mounting the AV Bridge 2x1into a full rack space)

• AV Bridge 2x1
• Quick-Start Guide
• PoE+ Midspan Power Injector with AC Cord Set(s)
• 3 ft (0.9 m) Cat-5 Cable Black
• 6 ft (1.8 m) USB 3.0 Cable Type A to B
• 6 x 3-position Phoenix-style Connectors
• Half-Rack Mounting Kit (for mounting the AV Bridge 2x1into a full rack space)
