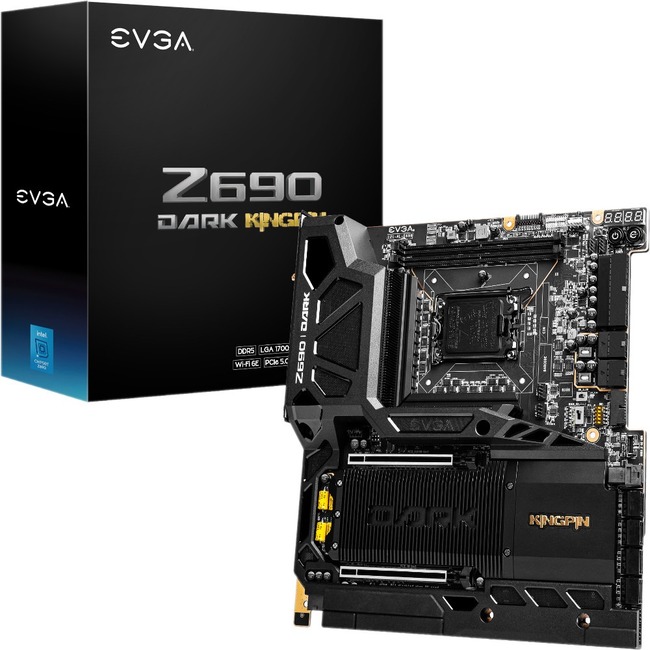

EVGA Z690 DARK K|NGP|N Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Extended ATX
New
EVGA Z690 DARK K|NGP|N Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Extended ATX - Core Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM - 2 x Memory Slots - IEEE 802.11ax - 6 x SATA Interfaces
| $942.96 |
- 21 Phase Digital VRM
- Preinstalled Rear I/O Cover
- EVGA Wi-Fi Antenna
- PCI Express 5.0 Ready
- NVIDA® SLI® Ready Enthusiast Layout
- Supports NVIDIA® Resizable BAR
- Metal Reinforced PCIe slots
Subscribe & Save5%
| Buy Once $942.96 | |||
| Subscribe & Save$895.81 | |||
| Delivery Ferquency |
You may be also interested
$113.71
$129.99
$219.61
$259.99
$342.73
$309.99
$196.71
$239.99
$134.65
$129.99
$196.73
$209.99
$294.74
$379.99
$277.56
$259.99
$324.59
$359.99
$213.77
$189.99
$134.99
$129.99
$477.89
$419.99
$117.11
$112.99
$500.42
$479.99
$184.86
$189.99
$223.13
$239.99
$199.03
$169.99
$150.91
$149.99
$236.32
$229.99
$185.40
$169.99
EVGA Z690 DARK K|NGP|N Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Extended ATX - Core Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM - 2 x Memory Slots - IEEE 802.11ax - 6 x SATA Interfaces
Core Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM - 2 x Memory Slots - IEEE 802.11ax - 6 x SATA Interfaces
Core Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM - 2 x Memory Slots - IEEE 802.11ax - 6 x SATA Interfaces
Product Specifications
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 6600 MHz |
| Multi GPU Supported | SLI |
| Number of M.2 Interfaces | 4 |
| Number of Memory Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core |
| Total Number of Onboard USB Ports | 8 |
| Wireless LAN Standard | IEEE 802.11ax |
| Additional Warranty Information | 3 year limited warranty which covers parts and labor |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Brand Name | EVGA |
| Controller Type | Serial ATA/600 |
| Country of origin | Taiwan |
| Depth | 10.9" |
| Form factor | Extended ATX |
| Limited Warranty | 3 Year |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 121-AL-E699-KR |
| Manufacturer Website Address | http://www.evga.com |
| Marketing Information | EVGA DARK motherboards blaze the trail for other boards to follow and the Z690 DARK K|NGP|N is no exception. The ability to destroy world records is insignificant next to the power of a 21-phase VRM and a 10-layer PCB - capable of driving the most powerful 12th Gen Intel® Core™ processors. With support for 64GB of DDR5 memory at up to 6600MHz+(OC) PCIe Gen5 and PCIe Gen4 M.2 NVMe SSDs a new DARK age of overclocking will rise as quickly as new hardware becomes available. The Z690 DARK K|NGP|N is today's choice for the future of overclocking and gaming. |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Package Contents |
|
| Product Model | Z690 DARK K|NGP|N |
| Product Name | Z690 DARK K|NGP|N Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Total Number of USB Ports | 7 |
| UPC Alternates | 843368074074 |
| Width | 12" |
