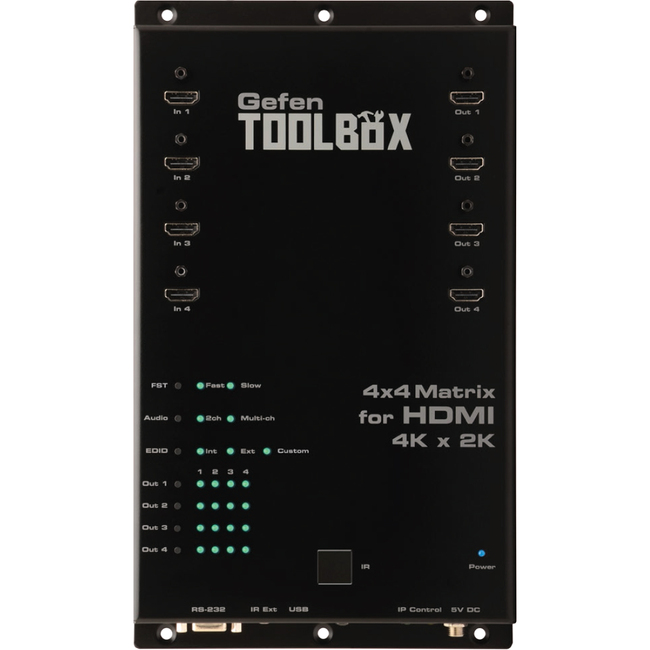

Gefen 4x4 Matrix for HDMI with Ultra HD 4K x 2K Support - 3840 × 2160 - 4 x 4 - Display, TV - 4 x HDMI Out
3840 × 2160 - 4 x 4 - Display, TV - 4 x HDMI Out
| Brand Name | Gefen |
| Connectivity technology | Cable |
| Depth | 1" |
| Device Supported | TV |
| Device Supported | Display |
| Height | 11.9" |
| Input voltage | 5 V DC |
| Manufacturer | Gefen Inc |
| Manufacturer Part Number | GTB-HD4K2K-444-BLK |
| Manufacturer Website Address | http://www.gefen.com |
| Marketing Information | Route four Ultra Hi-Def sources to four Ultra HD displays with FST 3DTV and 4K x 2K Ultra High-Definition support The GefenToolBox 4x4 Matrix for HDMI 4Kx2K is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K x 2K or 1080p Full HD sources to be routed to up to four Ultra HD displays. This product supports resolutions up to 4K x 2K (3840 x 2160@30Hz). Deep Color 3DTV pass-through and lossless audio formats such as LPCM 7.1 Dolby® TrueHD and DTS-HD® Master Audio™ are also supported. Each Hi-Def source can be routed to any of the connected displays using the front panel push-button controls the included IR remote RS-232 serial control interface or through IP using Telnet UDP and the built-in web server interface. LED indicators on the top panel display the current routing status FST mode audio configuration and EDID settings. |
| Maximum Video Bandwidth | 300 MHz |
| Maximum Video Resolution | 3840 × 2160 |
| Number of HDMI Inputs | 4 |
| Package Contents | - 4x4 Matrix for HDMI with Ultra HD 4K x 2K Support
- 1 x DB-9 Cable
- 1 x IR Remote
- 1 x 5V DC Power Supply
- 1 x AC Power Cord
- 1 x Quick-Start Guide
|
| Packaged Quantity | 1 |
| Power consumption | 13 W |
| Product color | Black |
| Product Name | 4x4 Matrix for HDMI with Ultra HD 4K x 2K Support |
| Product Type | Audio/Video Switchbox |
| UPC Alternates | 845344081410 |
| USB | Yes |
| Width | 6.9" |
