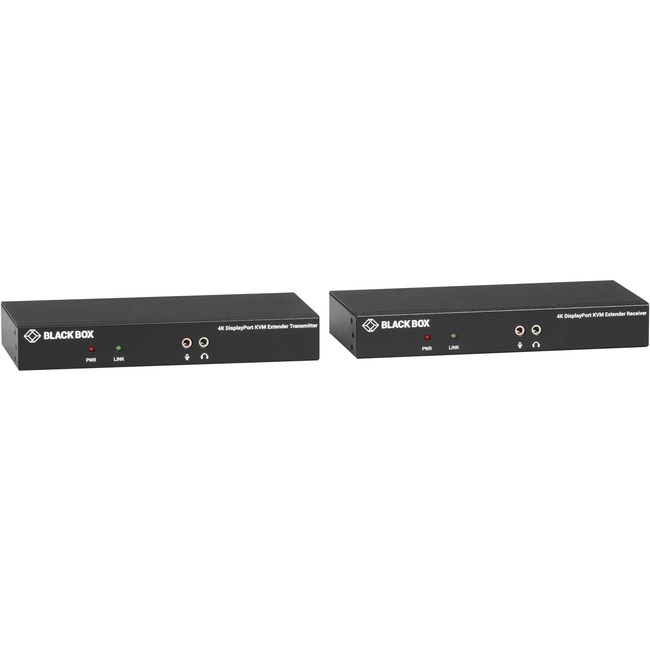

Black Box KVXLCDPF-100 KVM Extender - 1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - 5 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant
1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - 5 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant
| Transmitter Depth | 7.09" |
| Transmitter Height | 0.83" |
| Transmitter Weight (Approximate) | 13.28 oz |
| Transmitter Width | 3.27" |
| Additional Information | - Housing Material: Chassis Metal
- Operating Temperature: 32 to 122° F (0 to 50° C)
- Storage Temperature: -4 to +140° F (-20 to +60° C)
|
| Brand Name | Black Box |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Form factor | Rack-mountable |
| Graphic Mode | 4K |
| Input voltage | 5 V DC |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCDPF-100 |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | The KVX Single Head KVM Extender lets you control a server or computer over a single-mode or multimode cable at distances of up to 10 km (depending on the SFP used fiber type and fiber bandwidth). This extender also supports 4K video. PC connection cables are included with this product making it a solution that is ready to use right out of the box. You can use your existing keyboard mouse and monitor to access both the server room and your office computer saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers medical facilities industrial warehouses and extended workstations. KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console making it an efficient and flexible solution. KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs. KVX Series Extenders are TAA compliant and backed by free lifetime technical support. KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or customers who require control of systems that are physically inaccessible placed in secure locations or in otherwise harsh environments. This can include command and control operations server management distribution monitoring or utilities process control centers. |
| Maximum Operating Distance | 32808.40 ft |
| Maximum Video Resolution | 3840 x 2160 |
| Microphone | Yes |
| Number of Computers Supported | 1 |
| Number of USB Ports | 5 |
| Package Contents | - 1 x Transmitter
- 1 x Receiver
- 2 x 5V 2A Power Supplies (includes US EU UK plug types)
- 1 x DisplayPort Cable M/M 1.2m (4 ft.)
- 1 x USB Type A to B Cable M/M 1.8m (6 ft.)
- 1 x 3.5mm Dual Audio / Mic Cable M/M 1.8m (6 ft.)
- 2 x Deskmounting brackets (with screws)
|
| Product Name | KVXLCDPF-100 KVM Extender |
| Product Series | KVX |
| Product Type | KVM Extender |
| Rack Height | 1U |
| UPC Alternates | 822088142591 |
