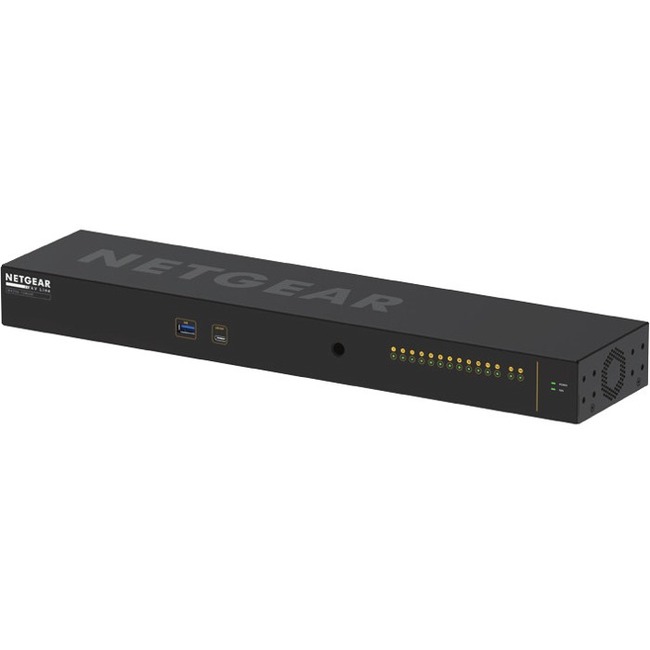

Netgear AV Line M4250-12M2XF 12x2.5G and 2xSFP+ Managed Switch (MSM4214X) - 12 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - Lifetime Limited Warranty
12 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 2 |
| PoE (RJ-45) Port | No |
| Power Plug Type | Type C |
| Total Number of Network Ports | 12 |
| Brand Name | Netgear |
| Country of origin | Thailand |
| Depth | 3.9" |
| Environmental Certification | ErP |
| Environmental Certification | REACH |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Netgear Inc |
| Manufacturer Part Number | MSM4214X-100NAS |
| Manufacturer Website Address | http://www.netgear.com |
| Marketing Information | Switching Engineered for AV over IP
The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.
NETGEAR M4250 series key features:
- Ranges from 8 to 16 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W 30W 60W 75W and 90W AVoIP endpoints
- Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
- Also includes 12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
- Designed for a clean integration with traditionalrack-mounted AV equipment
- The M4250 switches come with a sleek black display panel with status in front and all cabling plus additional status in the back
- Reversed mounting is possible when ports are desired on the front of the rack
- A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
- Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
- Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mountingoptionsoutside the rack as well
NETGEAR M4250 series AV software features:
- Pre-configured for audio and video over IP out of the box the M4250 switches enable encoders and decoders to be connected with zero configuration
- When more configuration is required an AV web-based GUI is available at the switch IP address:8080
- This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
- For audio profiles for Dante Q-SYS and AES67 are built-in as well as an AVB profile (AVB license sold separately
- For video the M4250 offers profiles for NVX SVSI Q-SYS NDI Kramer KDS Aurora Multimedia ZeeVee Atlona Dante and SDVoE
- Other AV CODECs and manufactures are supported as well as audio/video/ control mixed profiles
- To further simplify star deployments NETGEAR IGMP Plus™ brings multicast automation between all M4250 switches and with M4300/M4500
- Simply connect the switches together and you are done!
NETGEAR M4250 series other software features:
- All M4250 switches share the same high-end NETGEAR Layer 2 / Layer 3 switching engine for a consistent experience
- All switches in the M4250 series have another main IT web-based GUI for midsize Enterprise campus networks IoT and IPTV
- Additional features include static RIP and PIM-SM DM and SSM multicast routing DHCP Server and PTPv2 Transparent Clock (1-step E2E)
- AVB is the only feature requiring a license all other advanced features are available license-free
- Advanced classifier-based time-based hardware implementation for L2 (MAC) L3 (IP) and L4 (UDP/TCP transport ports)
- Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
- Voice VLAN with SIP H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
- Efficient authentication tiering with successive DOT1X MAB and Captive Portal methods for streamlined BYOD
|
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 2.5GBase-T |
| Network Technology | 10GBase-X |
| Plug/Connector Type | IEC 60320 C14 |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 12 x 2.5 Gigabit Ethernet Network |
| Power source | Power Supply |
| Product Line | AV Line |
| Product Model | M4250-12M2XF |
| Product Name | AV Line M4250-12M2XF 12x2.5G and 2xSFP+ Managed Switch (MSM4214X) |
| Product Type | Ethernet Switch |
| UPC Alternates | 606449149654 |
| Width | 17.3" |
