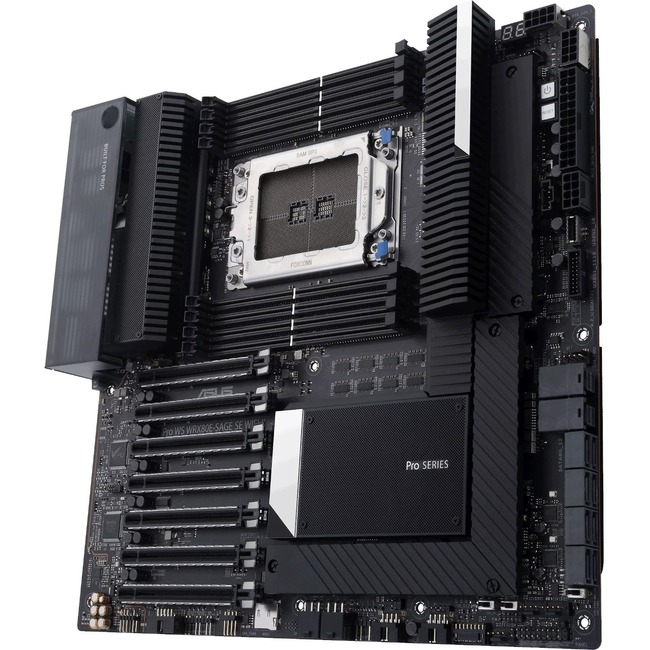

Asus WS WRX80E-SAGE SE WIFI II Desktop Motherboard - AMD WRX80 Chipset - Socket sWRX8 - Extended ATX
| $1,031.13 Retail $1,099.99 |
- AMD sWRX8 Socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors, with overclocking available to dip into untapped potential and performance
- Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet, WiFi 6E
- ASMB9-iKVM remote management: AST-2500 BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
- Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
- Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security
Ryzen Threadripper Processor Supported - 2 TB DDR4 SDRAM Maximum RAM - DIMM, UDIMM, LRDIMM, RDIMM - 8 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - 8 x SATA Interfaces
Product Specifications
| Bluetooth Standard | Bluetooth 5.3 |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX80 |
| Maximum Memory Supported | 2 TB |
| Number of M.2 Interfaces | 3 |
| Number of Memory Slots | 8 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Total Expansion Slots | 7 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 3.0 |
| Processor Socket | Socket sWRX8 |
| Processor Supported | Ryzen Threadripper |
| S/PDIF | Yes |
| Total Processor Supported | 1 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Depth | 12.2" |
| Form factor | Extended ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ProWSWRX80E-SAGESEWIFIII |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Ultimate power for professional productivity The ASUS Pro WS WRX80E-SAGE SE WIFI II is engineered to unleash the incredible power of the latest AMD Ryzen™ Threadripper™ Pro series processors with support for overclocking to dip into untapped potential and performance. This reliable multi-core CPU foundation is the ideal choice for professional creative workloads like video editing and 3D rendering. Additionally seven PCIe® 4.0 slots with SafeSlot fortification can deliver exceptional performance for the latest high-powered graphics cards and storage devices. Low-profile professionalism With metallic black aluminum extrusions stainless steel black mesh with highlighted details and a transparent smoky gray I/O cover Pro WS WRX80E-SAGE SE WIFI II presents a professional low-profile look for content creators. Multi-GPU support Pro WS WRX80E-SAGE SE WIFI II features seven PCIe® 4.0 x16 slots for high-powered graphics cards enabling enhanced performance for professional design modeling and simulation and rendering applications. 3 M.2 PCIe 4.0 Pro WS WRX80E-SAGE SE WIFI II includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three M.2 slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads and comes with ASUS Q-Latch. More storage With NVMe RAID support for Ryzen™ Threadripper™ PRO processors unused CPU PCIe® 4.0 lanes can be assigned to storage allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput - up to 8x faster than individual PCIe® 3.0 x4 SSDs. RAID can also be configured with PCIe® 3.0 SSDs. * With included ASUS Hyper M.2 x16 Gen 4 card. RAID is limited to a maximum of 10 NVMe SSDs on the AMD WRX80 platform. Supreme memory capability The ASUS Pro WS WRX80E-SAGE SE WIFI II supports ECC memory to automatically detect and correct data corruption reducing the chance of system crashes. Being infused with proprietary memory trace layout that improve signal integrity and mitigate noise this motherboard enables DDR4 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads. WiFi 6E Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments. |
| Memory form factor | RDIMM |
| Memory form factor | LRDIMM |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents |
|
| Product Model | WS WRX80E-SAGE SE WIFI II |
| Product Name | Pro WS WRX80E-SAGE SE WIFI II Desktop Motherboard |
| Product Series | PRO |
| Product Type | Desktop Motherboard |
| Total Number of USB Ports | 10 |
| Width | 13" |
