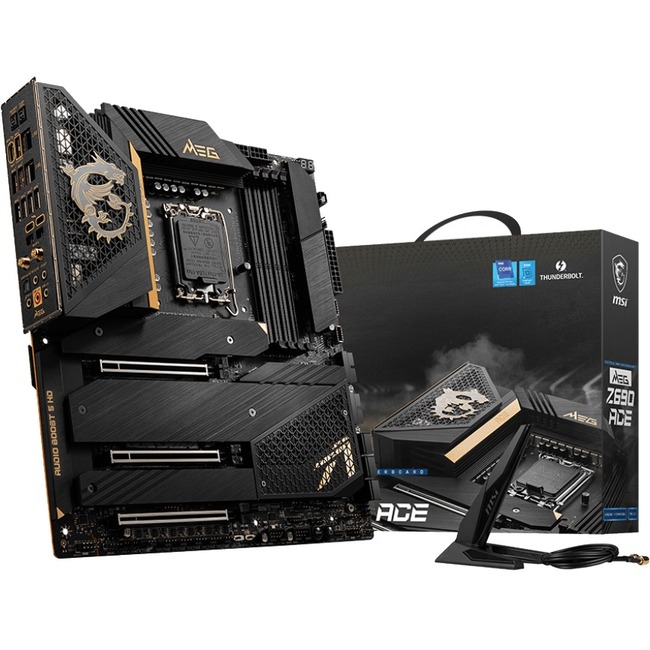

MSI MEG Z690 ACE Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - 6 x SATA Interfaces
Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 6666 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 4000 MHz |
| Multi GPU Supported | CrossFire |
| Multi GPU Supported | SLI |
| Number of Memory Slots | 4 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 7 |
| Onboard Video | No |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Pentium Gold |
| Processor Supported | Core i9 |
| Processor Supported | Core i7 |
| Processor Supported | Core i5 |
| Processor Supported | Celeron |
| S/PDIF | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Depth | 9.6" |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | MSI |
| Manufacturer Part Number | Z690ACE |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | Extreme Power Design: Premium digital PWM direct 19+1+2 phases with 105A Smart Power Stage Titanium Choke III and dual CPU power connectors to unleash the true power of your processors. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR5 SDRAM |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - MEG Z690 ACE Desktop Motherboard
- USB Drive
- Cleaning Brush
- Wi-Fi Antenna
- Case Badge
- User Manual
- Quick Installation Guide
- MEG Stickers
- Cable Stickers
- Reward Program / Shout out Flyer
- Product Catalog
- Registration Card
- M.2 Screw / Standoff Sets
- Screwdrivers
- EZ Front Panel Cable
- 1 to 2 RGB LED Extension Y Cable
- CORSAIR RGB LED Extension Cable
- Rainbow RGB LED Extension Cable
- 4 x SATA Cables
- Wiping Cloth
- 2 x DP to Mini DP Cable
- 2 x Thermistor Cable
|
| Product Line | MEG |
| Product Model | Z690 ACE |
| Product Name | MEG Z690 ACE Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 824142270295 |
| Width | 12" |
