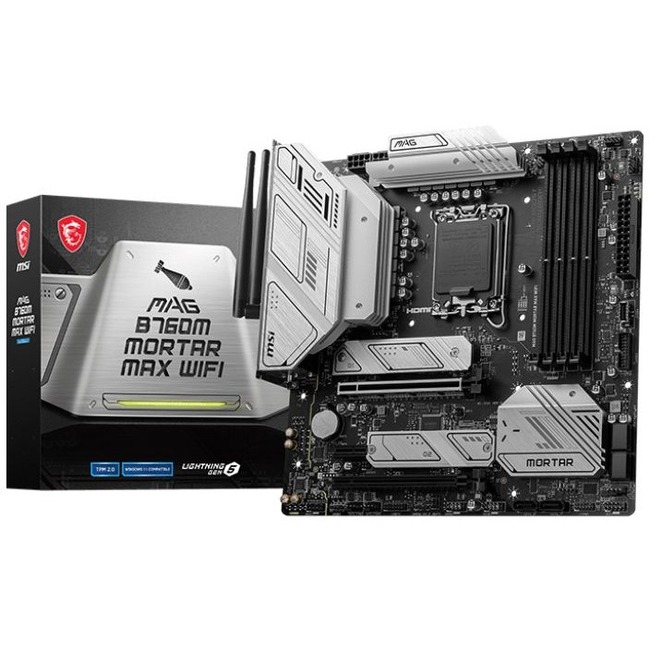

MSI MAG B760M MORTAR MAX WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX
New
MSI MAG B760M MORTAR MAX WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
| $188.06 Retail $199.99 |
- Lightning Gen 5 | The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- OC Engine | With the clock generator, the OC Engine technology releases the maximum power of CPU.
- Latest DDR5 Memory | A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Wi-Fi 6E | The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- 2.5G Network Solution | Featuring premium 2.5G LAN to deliver better network experience.
- Lightning USB 20G | Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- M.2 Shield FROZR | M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster
- Memory Boost | Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Core Boost | With pre
Subscribe & Save5%
| Buy Once $188.06 | |||
| Subscribe & Save$178.66 | |||
| Delivery Ferquency |
You may be also interested
$95.32
$89.99
$259.38
$279.99
$205.56
$199.99
$107.36
$99.99
$281.61
$249.99
$182.84
$169.99
$198.13
$179.99
$185.12
$179.99
$134.85
$129.99
$99.21
$99.99
$931.22
$899.99
$236.69
$244.99
$117.85
$119.99
$156.17
$179.99
$155.49
$149.99
$182.87
$179.99
$188.83
$179.99
$239.31
$269.99
$204.66
$189.99
$219.61
$209.99
MSI MAG B760M MORTAR MAX WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Product Specifications
| Bluetooth Standard | Bluetooth 5.3 |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 6200 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 5800 MHz |
| Memory Speed Supported | 5400 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 4800 MHz |
| Number of Memory Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 3.0 |
| Processor Generation Supported | 12th Gen |
| Processor Generation Supported | 13th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Celeron |
| Processor Supported | Core |
| Processor Supported | Pentium Gold |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Form factor | Micro ATX |
| Limited Warranty | 3 Year |
| Manufacturer | MSI |
| Manufacturer Part Number | B760MMOTWIFI |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | The MAG B760M Mortar Wifi fights alongside gamers in pursuit of honor. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Package Contents |
|
| Product Line | MAG |
| Product Model | B760M MORTAR MAX WIFI |
| Product Name | MAG B760M MORTAR MAX WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 10 |
| RAID Levels | 5 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 824142310212 |
| Width | 9.6" |
