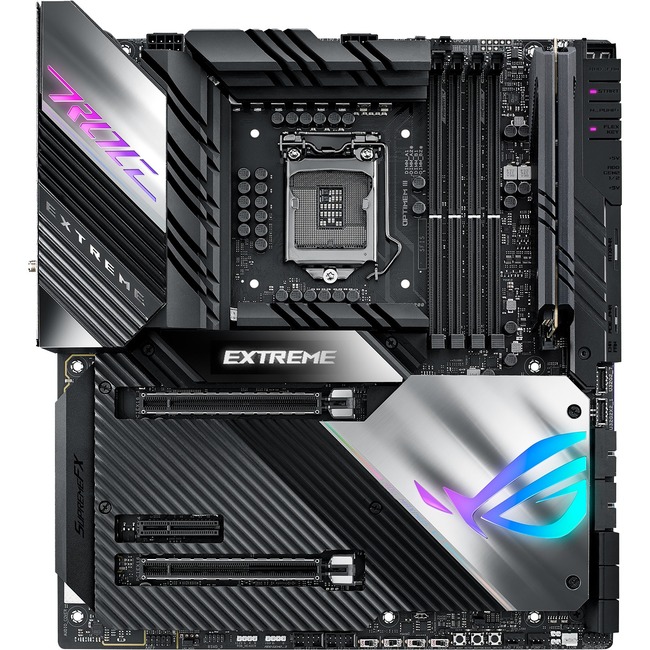

Asus ROG Maximus XIII Extreme Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Extended ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax/az - HDMI - 6 x SATA Interfaces
Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax/az - HDMI - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z590 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4133 MHz |
| Multi GPU Supported | SLI |
| Number of Memory Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Core i3 |
| S/PDIF | Yes |
| Total Processor Supported | 1 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/az |
| Audio Channels | 7.1 |
| Brand Name | Asus ROG |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Depth | 10.9" |
| Environmental Certification | RoHS |
| Form factor | Extended ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG MAXIMUS XIII EXTREME |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ROG Maximus XIII Extreme Intel® Z590 EATX motherboard with 18+2 power stages five M.2 slots USB 3.2 Gen 2x2 front-panel connector USB 3.2 Gen 2 front-panel connector dual Thunderbolt™ 4 Marvell® AQtion 10 Gb Ethernet Intel® 2.5 Gb Ethernet PCIe® 4.0 onboard WiFi 6E (802.11ax) and Aura Sync RGB lighting - Intel® Socket LGA 1200 for 11th Gen Intel® Core™ processors and 10th Gen Intel Core Pentium® Gold and Celeron® processors
- Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking AI Cooling AI Networking and Two-Way AI Noise-Cancelation
- Robust Power Solution: 18+2 teamed power stages - each rated at 100 Amps ProCool II power connectors MicroFine alloy chokes and 10K Japanese-made black metallic capacitors
- Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover high-conductivity thermal pad five M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
- High-Performance Networking: Onboard WiFi 6E (802.11ax) Marvell® AQtion 10 Gb Ethernet Intel® 2.5 Gb Ethernet and ASUS LANGuard
- Fastest Gaming Connectivity: PCIe® 4.0 five M.2 slots USB 3.2 Gen 2x2 front-panel connector dual Thunderbolt™ 4 USB-C®
- Industry-leading Gaming Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for high-fidelity sound
- Unmatched Personalization: 2" LiveDash OLED ASUS-exclusive Aura Sync RGB lighting including one RGB header and three addressable Gen 2 RGB headers
- DIY-Friendly Design: Pre-mounted I/O shield V_Latch switch BIOS FlashBack™ Q-Code FlexKey Q-Connector SafeSlot and Graphics Card Holder
- Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
|
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents | - Maximus XIII Extreme Desktop Motherboard
- 1 x 1-to-3 ARGB Splitter Cable
- 2 x 1-to-4 Fan Splitter Cable
- 1 x RGB Extension Cable
- 3 x ROG Weave SATA 6G Cables
- 1 x 3-in-1 Thermistor Cables Pack
- 1 x ROG Fan Controller
- 1 x Fan EXT PWR Cable
- 1 x ARGB Input Cable
- 1 x USB Input Cable
- 1 x ROG Fan Controller 3M Mounting Tape
- 1 x Fan Controller Manual
- 1 x ROG DIMM.2 with Heatsink
- 1 x M.2 Pad for ROG DIMM.2
- 2 x M.2 Screw Package for ROG DIMM.2
- 1 x ASUS Wi-Fi Moving Antennas
- 1 x Q-connector
- 1 x ROG CLAVIS DAC
- 1 x ROG Key Chain
- 1 x ROG Logo Plate Stickers
- 1 x ROG Screwdriver
- 1 x ROG Stickers
- 1 x ROG Thank You Card
- 1 x ROG Graphics Card Holder
- 1 x USB Drive with Utilities and Drivers
- 1 x User Manual
|
| Product Line | Maximus XIII Extreme |
| Product Name | Maximus XIII Extreme Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Total Number of USB Ports | 8 |
| UPC Alternates | 195553093910 195553110259 |
| Width | 12" |
