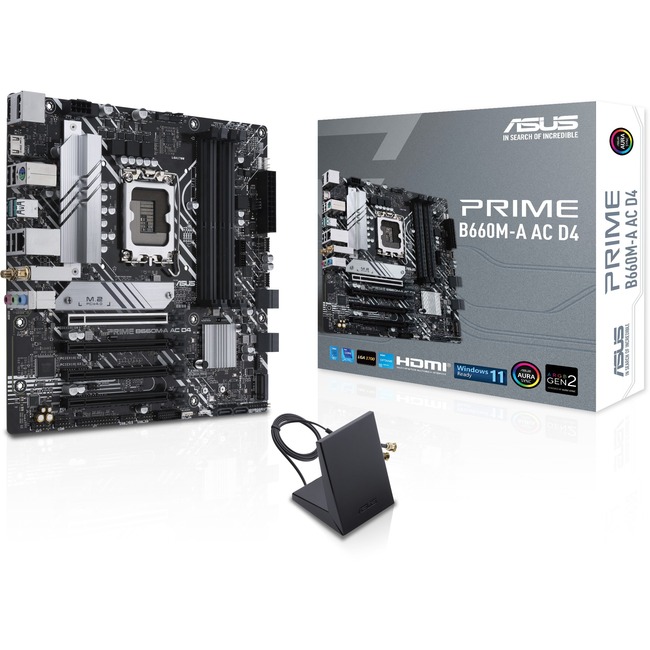

Asus Prime B660M-A AC D4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 6 x SATA Interfaces
Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | B660 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 3200 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 3733 MHz |
| Memory Speed Supported | 4600 MHz |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 3333 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 4266 MHz |
| Memory Speed Supported | 3600 MHz |
| Memory Speed Supported | 2933 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 5333 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 3466 MHz |
| Number of M.2 Interfaces | 2 |
| Number of Memory Slots | 4 |
| Number of SATA Interfaces | 6 |
| Onboard Video | CPU Dependent Video |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Pentium Gold |
| Processor Supported | Celeron |
| Processor Supported | Core |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Micro ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B660M-A AC D4 |
| Manufacturer Website Address | http://usa.asus.com |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents | - Prime B660M-A AC D4 Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi Moving Antennas
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x M.2 SSD screw package
- 1 x Support DVD
- 1 x User Guide
|
| Product Line | Prime |
| Product Model | B660M-A AC D4 |
| Product Name | Prime B660M-A AC D4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| UPC Alternates | 195553511919 |
| Width | 9.6" |
