Asus Prime Z790M-PLUSD4 Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Gigabit Ethernet | Yes |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 5133 MHz |
| Memory Speed Supported | 4500 MHz |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 3866 MHz |
| Memory Speed Supported | 5333 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 4700 MHz |
| Memory Speed Supported | 2933 MHz |
| Memory Speed Supported | 4266 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 3333 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 5066 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 3733 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 4600 MHz |
| Memory Speed Supported | 4133 MHz |
| Memory Speed Supported | 3200 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 3600 MHz |
| Number of M.2 Interfaces | 3 |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Processor Generation Supported | 12th Gen |
| Processor Generation Supported | 13th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Celeron |
| Processor Supported | Pentium Gold |
| Processor Supported | Core |
| Total Number of Onboard USB Ports | 7 |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Form factor | Micro ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIMEZ790M-PLUSD4 |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design comprehensive cooling solutions and intelligent tuning options PRIME Z790M-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS D4 motherboard packs flexible tools to tune every aspect of your system enabling performance tweaks to perfectly match the way you work to maximize productivity. Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system it offers intelligently simplified options for newcomers to PC DIY as well as more comprehensive features for seasoned veterans All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit darken Aura lighting and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. COOLING
PRIME Z790M-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads they improve heat transfer from the MOSFETs and chokes for better cooling performance. Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling setups. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |

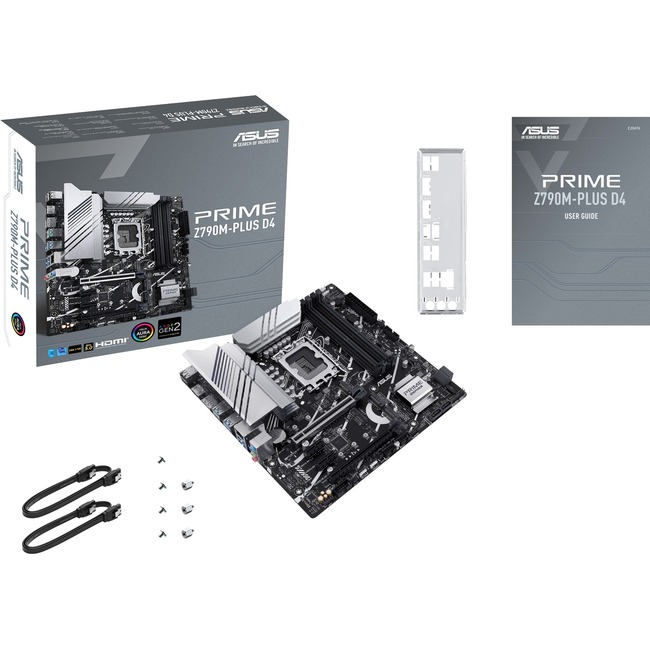

| Package Contents | - PRIME Z790M-PLUSD4 Gaming Desktop Motherboard
- 2 x SATA 6Gb/s Cables
- 1 x I/O Shield
- 2 x Screw packages for M.2 SSD
- 1 x User Guide
|
| Product Line | Prime |
| Product Model | Z790M-PLUSD4 |
| Product Name | PRIME Z790M-PLUSD4 Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 195553936682 |
| Width | 9.6" |
