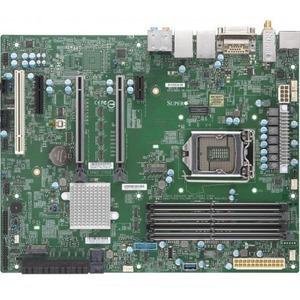

Supermicro X11SCA-W Workstation Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - ATX
| $464.50 |
- With the compatible Intel Pentium processor, experience splendid PC performance; enjoy songs, movies and get your work completed concurrently
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Supported 0 RAID levels provide data reliability and fault tolerance
- Wireless support reduces the number of cables required to connect peripherals
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX workstation motherboard
| Buy Once $464.50 | |||
| Subscribe & Save$441.28 | |||
| Delivery Ferquency |
64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
Product Specifications
| Chipset Manufacturer | Intel |
| Chipset Model | C246 |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2666 MHz |
| Number of Memory Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Number of SATA Interfaces | 8 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i3 |
| Processor Supported | Xeon |
| Processor Supported | Pentium |
| Processor Supported | Celeron |
| Total Number of Onboard USB Ports | 6 |
| Brand Name | Supermicro |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | ATX |
| Limited Warranty | 1 Year |
| Manufacturer | Supermicro Computer Inc |
| Manufacturer Part Number | MBD-X11SCA-W-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Marketing Information | UP Xeon® Motherboards - Socket H4 (LGA 1151) Xeon® E-2100 Boards / Socket H4 (LGA 1151) Supermicro's new X11SCA workstation motherboard comes in a standard ATX form factor packed with features and expandability options including 4k video support. Optimized for the latest Xeon E processors this platform supports up to 64GB of either ECC or non-ECC DDR4-2666 memory triple displays with DisplayPort 1.2 HDMI 2.0 DVI-D; dual M.2 U.2 dual GbE LAN ports and USB 3.1 Gen 2. In addition there is a front panel USB-C header on the X11SCA motherboard with different versions to add either gigabit wireless 802.11ac with Bluetooth 5.0 (X11SCA-W) or Supermicro IPMI 2.0 with an additional VGA port (X11SCA-F). |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents |
|
| Package type | Retail |
| Packaged Quantity | 1 |
| Product Model | X11SCA-W |
| Product Name | X11SCA-W Workstation Motherboard |
| Product Type | Workstation Motherboard |
| RAID Levels | 5 |
| RAID Levels | 0 |
| RAID Levels | 10 |
| UPC Alternates | 672042324514 |
| Width | 12" |
