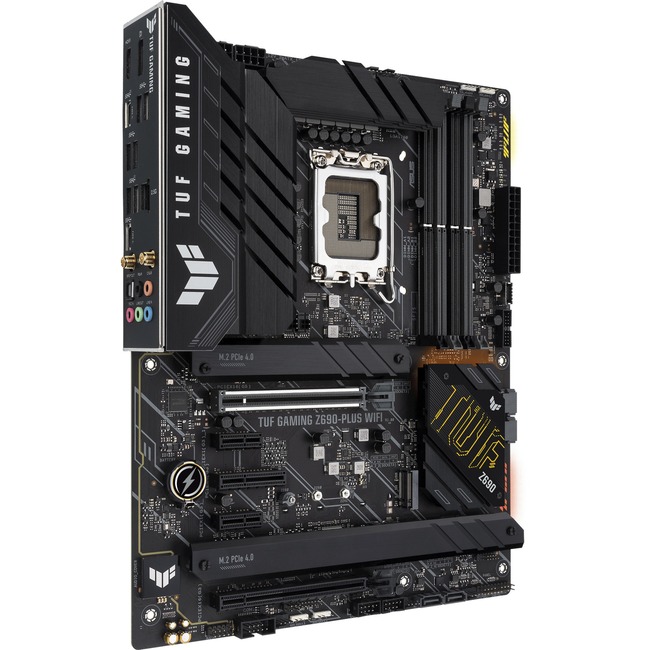

TUF GAMING Z690-PLUS WIFI Gaming Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 5400 MHz |
| Memory Speed Supported | 5800 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 4800 MHz |
| Number of Memory Slots | 4 |
| Number of Onboard USB 3.2 Ports | 3 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Video | CPU Dependent Video |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Celeron |
| Processor Supported | Core i5 |
| Processor Supported | Pentium Gold |
| Processor Supported | Core i9 |
| Processor Supported | Core i3 |
| Processor Supported | Core i7 |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | TUF |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Form factor | ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TUF GAMING Z690-PLUS WIFI |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Intel® Z690 (LGA 1700) ATX gaming motherboard 15 DrMOS power stages PCIe® 5.0 DDR5 memory four M.2 slots WiFi 6E and Intel 2.5 Gb Ethernet HDMI® DisplayPort™ USB 3.2 Gen 2x2 Type-C® front USB 3.2 Gen 2 Type C SATA 6 Gbps Thunderbolt™ 4 header and Aura Sync RGB lighting - Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
- Enhanced power solution: 14+1 DrMOS rated for 80 amps six-layer PCB ProCool sockets alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: PCIe® 5.0 USB 3.2 Gen2x2 Type-C® front USB 3.2 Gen 2 Type-C Thunderbolt™ 4 header support
- Made for online gaming: WiFi 6E Intel 2.5 Gb Ethernet and TUF LANGuard
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: Enlarged VRM heatsink PCH fanless heatsink M.2 heatsinks hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
- Outshine RGB Aura Effect: Stylish edge and PCH lighting design addressable RGB headers and RGB strip header support
Durable. Stable. Reliable. ASUS TUF GAMING Z690-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components an upgraded power solution and a comprehensive cooling system this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically TUF GAMING Z690-PLUS WIFI sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series. Rock-Solid Performance With upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core™ processors plus support for faster memory and storage TUF GAMING Z690 motherboards are the perfect foundation for your next high-core-count battle rig. DrMOS The onboard VRMs feature 14+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package delivering the power and efficiency that 12th Gen Intel Core processors demand.The power stages are each rated to handle 80 amperes to provide stable performance for current and future Intel processors. Easy PC DIY TUF GAMING motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy while Armoury Crate software provides Fan Xpert 4 and hardware information and offers full full control of Two-Way AI Noise Cancellation RGB lighting and peripheral settings. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig without unnecessary complexity. Build with Confidence TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts such as PC cases power supplies CPU coolers memory kits and more. With new partnerships and components being added regularly the TUF Gaming Alliance will continue to grow even stronger. Immersive Gaming TUF GAMING Z690 motherboards provide a high-performance gaming package with a long list of features to improve your experiences including ultrafast networking for smoother online gameplay pristine audio with positional cues for FPS gaming and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Product Model | GAMING Z690-PLUS WIFI |
| Product Name | GAMING Z690-PLUS WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 0 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 195553646239 |
| Width | 12" |
