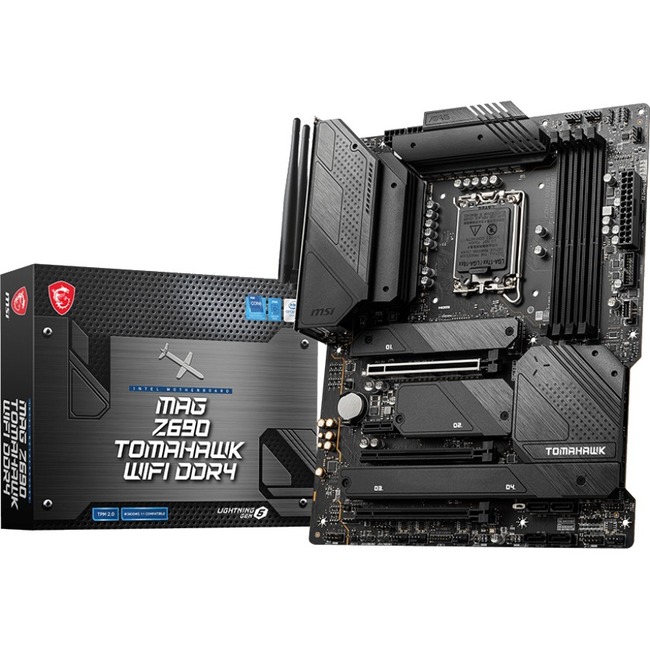

MSI MPG Z690 TOMAHAWK WIFI DDR4 Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 2666 MHz |
| Multi GPU Supported | CrossFire |
| Number of Memory Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| Number of SATA Interfaces | 6 |
| Onboard Video | CPU Dependent Video |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Celeron |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Depth | 9.6" |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | MSI |
| Manufacturer Part Number | Z690TOMWID4 |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works. Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller offering never before seen USB speeds up to 20Gbps with USB Type-C |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR4 SDRAM |
| Number of USB 2.0 Ports | 2 |
| Package Contents | - MPG Z690 TOMAHAWK WIFI DDR4 Desktop Motherboard
- USB Drive
- Wi-Fi Antenna
- Case Badge
- User Manual
- Quick Installation Guide
- MEG Stickers
- Reward Program / Shout out Flyer
- MSI Product Catalog
- Product Registration Card
- EZ M.2 Clip
- 2 x SATA Cables
|
| Product Line | MPG |
| Product Model | Z690 TOMAHAWK WIFI DDR4 |
| Product Name | MPG Z690 TOMAHAWK WIFI DDR4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 10 |
| RAID Levels | 5 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 824142270363 |
| Width | 12" |
