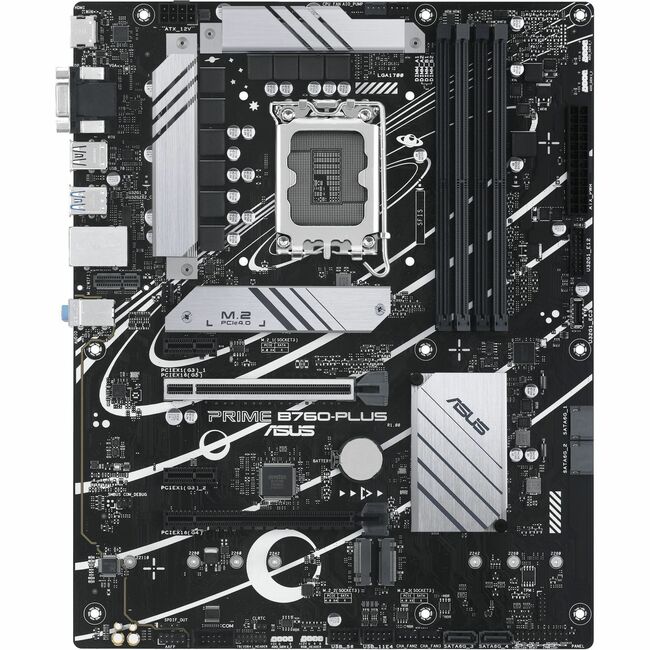

Asus Prime PRIME B760-PLUS Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Core, Celeron, Pentium Gold Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Core, Celeron, Pentium Gold Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported | 6200 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 5400 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 5800 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 4800 MHz |
| Number of M.2 Interfaces | 3 |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 3.0 |
| Processor Generation Supported | 13th Gen |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Pentium Gold |
| Processor Supported | Core |
| Processor Supported | Celeron |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Form factor | ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B760-PLUS |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13thGen Intel®Core™ Processors. Boasting a robust power design comprehensive cooling solutions and intelligent tuning options PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system enabling performance tweaks to perfectly match the way you work to maximize productivity. - Intelligent Control
- UEFI BIOS
Intelligent Control ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system it offers intelligently simplified options for newcomers to PC DIY as well as more comprehensive features for seasoned veterans. All-Around Energy Efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit darken Aura lighting and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. COOLING PRIME B760-PLUS motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 Heatsink M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and these removable captive screws help reduce risk of drops or loss during heatsink removal.
|
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Package Contents | - Prime B760-PLUS Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 2 x Screw Packages for M.2 SSD
- 1 x User guide
|
| Product Line | Prime |
| Product Name | Prime B760-PLUS Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Total Number of USB Ports | 6 |
| UPC Alternates | 197105102989 |
| Width | 12" |
