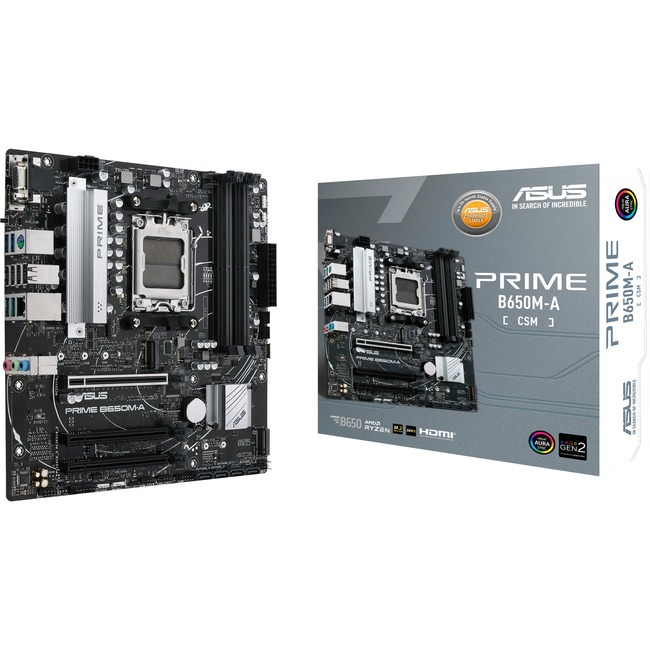

Asus Prime B650M-A-CSM Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX
| $185.43 |
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
| Buy Once $185.43 | |||
| Subscribe & Save$176.16 | |||
| Delivery Ferquency |
Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Product Specifications
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 5000 MHz |
| Number of M.2 Interfaces | 2 |
| Number of Memory Slots | 4 |
| Number of Total Expansion Slots | 3 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Form factor | Micro ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B650M-A-CSM |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design comprehensive cooling solutions and intelligent tuning options PRIME B650M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. ASUS Corporate Stable Model ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality TCO-optimized solution for your business needs. Optimize IT endpoint management Designed to assist IT staff in monitoring and controlling devices within their corporate networks and facilitate inventory checking in multiple locations remotely Automate IT maintenance Allows IT staff to schedule automatic updates of the latest BIOS software and utilities to specific or all devices at off-peak times enhancing system stability and IT operational flexibility Securely manage all of endpoints Securely manage endpoint configuration portable storage access and PC software applications by enabling them to create grouping rules on individual devices FLEXIBILITY Intelligent Control | CPU Performance Boost AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Package Contents |
|
| Product Line | Prime |
| Product Model | B650M-A-CSM |
| Product Name | PRIME B650M-A-CSM Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 195553936330 |
| Width | 9.6" |
