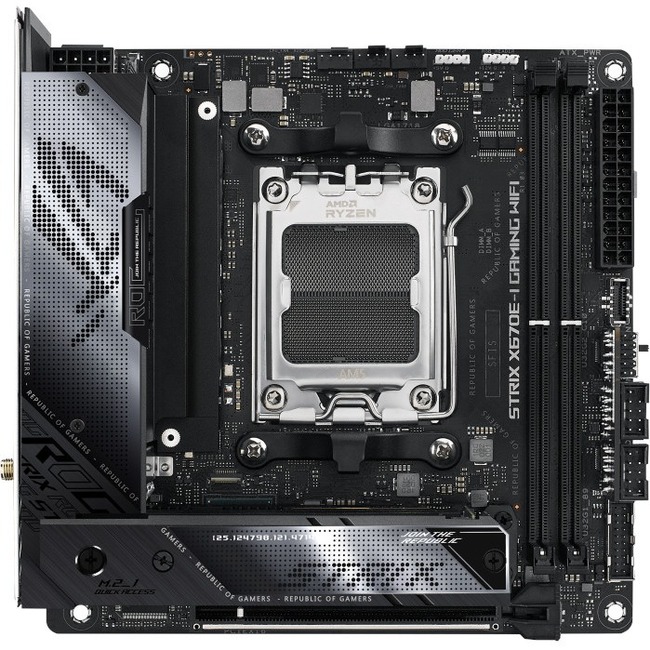

Asus ROG Strix X670E-I GAMING WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - Mini ITX - Ryzen 5, Ryzen 7, Ryzen 9 Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - 2 x SATA Interfaces
Ryzen 5, Ryzen 7, Ryzen 9 Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - 2 x SATA Interfaces
| Bluetooth Standard | Bluetooth 5.2 |
| Chipset Manufacturer | AMD |
| Chipset Model | X670 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 5800 MHz |
| Number of Memory Slots | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 5 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 5.0 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | Asus ROG |
| Controller Type | Serial ATA/600 |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Mini ITX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROGSTRIXX670E-IGAMINGWIFI |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | STRIX X670E-I GAMING WIFI
The ROG Strix X670E-I Gaming WiFi crams the latest tech into the diminutive mini-ITX footprint and then branches out with the ROG Hive to put vital controls and I/O at your fingertips. At motherboard level PCIe 5.0 slots for graphics and storage ride alongside dual-channel DDR5 to bring large-scale bandwidth to games and CPU-intensive workloads. Heavyweight power delivery and vertically-stacked heatsinks crush thermals and lay a potent foundation for exclusive ROG overclocking tools to push performance boundaries. With all this and more this tiny titan dishes up a space-saving AM5 build that allows you to comfortably host larger displays and a spread of ROG gaming peripherals on your desktop. ALL-ROUND PERFORMANCE Robust power delivery innovative overclocking tools and comprehensive cooling controls make the ROG Strix X670E-I more than a match for larger rivals. Load up and freely customize your AMD Ryzen™ 7000 Series processor to shred through everything. PCIE PERFORMANCE The ROG Strix X670E-I neatly increases mini-ITX expansion capabilities with vertically-stacked PCIe 5.0 and PCIe 4.0 M.2 slots. PCIe 5.0 support also extends to the x16 slot which is reinforced with SafeSlot providing structural support and bandwidth to handle large and powerful next-gen GPUs. LEADING CONNECTIVITIY The ATX experience thoughtfully scaled into mini-ITX: build easier the ROG FPS-II card and grace your desktop with the ROG Hive dual USB4® ports and support for the latest WiFi 6E standard. ROG STRIX HIVE The all-new ROG Strix Hive brings critical controls and I/O within arm's reach moving them from the cramped quarters of an SFF chassis to a compact peripheral that sits on the desktop. DIY-friendly buttons and diagnostic LEDs are brought front and center along with a large volume dial. On the sides a varied group of I/O ports handle audio input and output and provide convenient connectivity for grab-and-go peripherals. PLAY IN STYLE The dark ROG Strix colorway pairs perfectly with other products from the diverse ROG ecosystem allowing you to create a fully customized gaming setup that reflects your personal style. UNDENIABLY ROG STRIX A perforated metal mesh design on the I/O shield and M.2 heatsink can catch the light of internal RGB accessories or elegantly fade into the darkness of stealthy builds. Cypertext and angular accents make this board an unmistakable member of the ROG Strix series. SOFTWARE UTILITIES ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR5 SDRAM |
| Number of USB 2.0 Ports | 3 |
| Package Contents | - Strix X670E-I GAMING WIFI Gaming Desktop Motherboard
- 2 x SATA 6Gb/s Cables
- 1 x ROG USB2.0 Splitter Cable
- 1 x Panel Cable
- 1 x ROG FPS-II Card
- 1 x ROG STRIX HIVE
- 1 x USB Type-C® Power Connection Cable
- 1 x Thermal pad for M.2
- 1 x ASUS Wi-Fi Moving Antennas
- 1 x Cable Ties Pack
- 1 x Rubber Package(s) for M.2
- 1 x Q-Latch Package(s) for M.2
- 1 x ROG Key Chain
- 1 x ROG Strix Stickers
- 1 x ROG Strix Thank You Card
- 1 x User Guide
|
| Product Line | Strix |
| Product Model | X670E-I GAMING WIFI |
| Product Name | Strix X670E-I GAMING WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Total Number of USB Ports | 10 |
| UPC Alternates | 195553905572 |
| Width | 6.7" |
