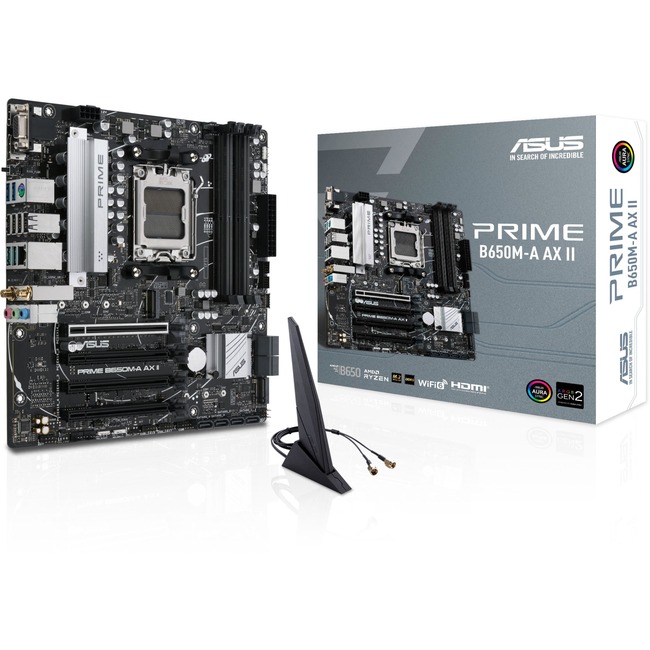

Asus Prime Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX
| $175.91 Retail $199.99 |
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- CEC Tier II ready
| Buy Once $175.91 | |||
| Subscribe & Save$167.11 | |||
| Delivery Ferquency |
Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 8 x SATA Interfaces
Product Specifications
| Bluetooth Standard | Bluetooth 5.2 |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 6200 MHz |
| Number of M.2 Interfaces | 2 |
| Number of Memory Slots | 4 |
| Number of SATA Interfaces | 8 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Environmental Certification | RoHS |
| Form factor | Micro ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B650M-A AX II |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design comprehensive cooling solutions and intelligent tuning options PRIME B650M-A AX II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system enabling performance tweaks to perfectly match the way you work to maximize productivity. CPU Performance Boost AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. All-Around Energy Efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit darken Aura lighting and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. Flexible Cooling Controls ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS. Precise Digital Power Control UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure tweak and tune your system. It offers intelligently simplified options for PC DIY beginners as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick and Simple Setup EZ mode displays vital settings and stats and also offers guided wizards drag-and-drop functionality and one-click application of important settings - all to help you get your rig up and running in no time. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR5 SDRAM |
| Package Contents |
|
| Product Line | Prime |
| Product Name | PRIME B650M-A AX II Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| UPC Alternates | 197105020481 |
| Width | 9.6" |
