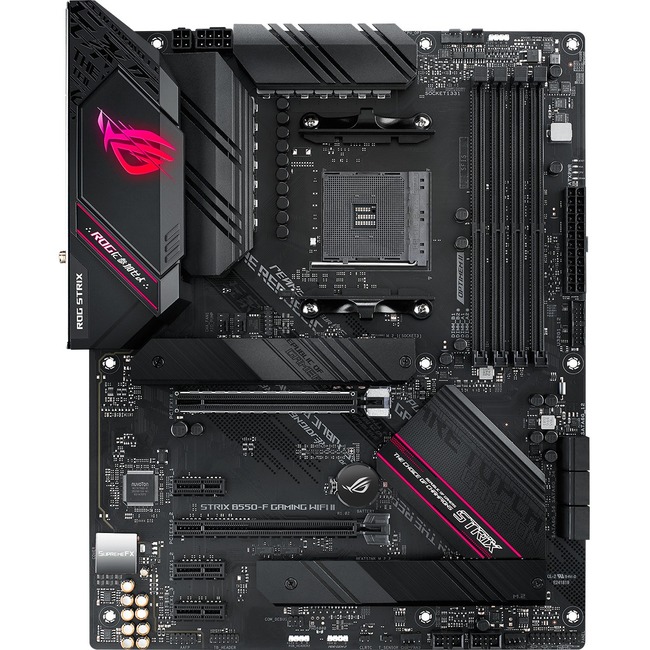

Asus ROG Strix STRIX B550-F GAMING WIFI II Gaming Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX
| $185.98 Retail $204.99 |
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 2 USB 2.0 ports, transfer several documents without error
| Buy Once $185.98 | |||
| Subscribe & Save$176.68 | |||
| Delivery Ferquency |
Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Product Specifications
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4800 MHz |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 5 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3 PRO |
| S/PDIF | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | Asus ROG |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Form factor | ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROGSTRIXB550FGAMINGWIFIII |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series including the latest PCIe® 4.0. With robust power delivery and effective cooling ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software ROG Strix B550-F Gaming WiFi II gives you a head start on your dream build ADVANCE YOUR GAMING IMMERSION ROG Strix B550-F Gaming WiFi II is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage allowing you to pick up on the subtlest of cues for a completely immersive gaming experience. PCIE 4.0-READY ROG Strix B550-F Gaming WiFi II features two M.2 slots one of which supports the PCIe 4.0 standard to provide maximum storage flexibility and the lightning-fast data speeds. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost. ALL-ROUND PERFORMANCE ROG Strix B550-F Gaming WiFi II provides robust power delivery to fuel Ryzen's cores comprehensive cooling and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues. PLAY YOUR OWN STYLE The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming WiFi II are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem you can create a fully customized gaming setup that reflects your personal style. UNDENIABLY ROG STRIX ROG Strix B550-F Gaming WiFi II embodies the ROG spirit with eye-catching aesthetics including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future while clearly reflecting the series' gaming roots. ROG GIVES YOU MORE ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want. UEFI BIOS The renowned ROG UEFI (BIOS) provides everything you need to configure tweak and tune your rig. It offers intelligently simplified options for newcomers to PC DIY as well as comprehensive features for seasoned veterans. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Product Line | Strix |
| Product Model | STRIX B550-F GAMING WIFI II |
| Product Name | STRIX B550-F GAMING WIFI II Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Total Number of USB Ports | 8 |
| Width | 12" |
