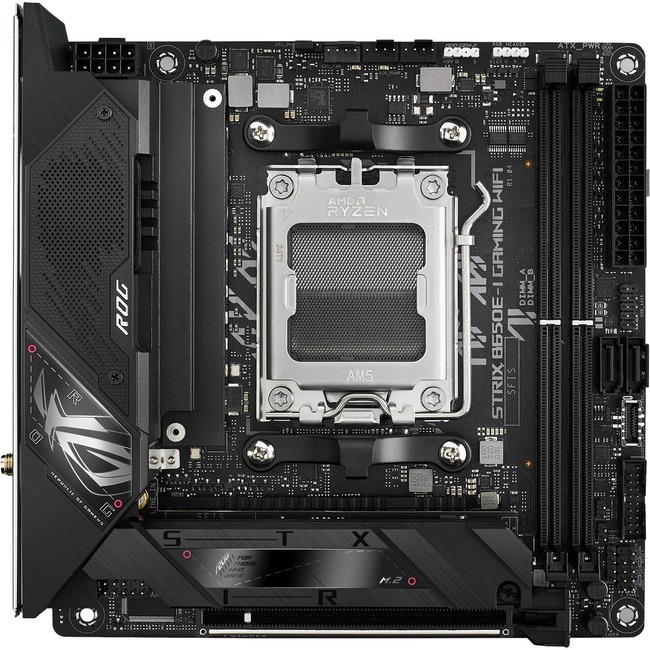

Asus ROG Strix B650E-I GAMING WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Mini ITX - Ryzen 7 Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - 2 x SATA Interfaces
Ryzen 7 Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - 2 x SATA Interfaces
| Bluetooth Standard | Bluetooth 5.2 |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 4800 MHz |
| Memory Standard | DDR4-4400/PC4-35200 |
| Number of Memory Slots | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 5.0 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 5 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | Asus ROG |
| Controller Type | Serial ATA/600 |
| Form factor | Mini ITX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG STRIX B650E-I GAMING |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | ROG STRIX B650E-I GAMING WIFI Don't be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5 it's a perfect partner for Ryzen 7000 particularly in stealthy SFF builds. DIY-FRIENDLY FEATURES | M.2 Q-LATCH The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws. BIOS FLASHBACK BUTTON BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed. FLEXKEY BUTTON At its default FlexKey functions as a system reset button but it can also be easily reassigned to quickly activate Safe Boot or enter the BIOS. Q-LED Four onboard LEDs indicate power status and identify problems with CPU memory graphics card or boot device for quick diagnosis. ALL-ROUND PERFORMANCE To keep up with the big boys the ROG Strix B650E-I comes stacked with a beefy power solution and a quiet thermal array giving it a nice share of headroom to push for faster frequencies. But the speed doesn't stop there: memory graphics cards and storage can all be cranked to the max thanks to DDR5 and PCIe 5.0 support. PCIE 5.0 Fully embracing the new standard the Strix B650E-I offers end-to-end PCIe 5.0 support to give unfettered bandwidth for the fastest SSDs and graphics cards available. The x16 expansion slot is Gen 5-ready and is protected with a SafeSlot retention bracket. The onboard M.2 slot is also geared for PCIe 5.0 allowing for blistering 16 GB/s read and write speeds while the other slot delivers still-impressive 8 GB/s transfers over its PCIe 4.0 interface. |
| Memory form factor | UDIMM |
| Memory form factor | DIMM |
| Memory Technology | DDR5 SDRAM |
| Package Contents | - Strix B650E-I GAMING WIFI Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ROG USB2.0 splitter cable
- 1 x Panel cable
- 1 x Thermal pad for M.2
- 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties package
- 1 x M.2 Bracket
- 1 x M.2 SSD screw package
- 1 x M.2 Q-Latch package for M.2 backplate
- 1 x ROG key chain
- 1 x ROG Strix sticker
- 1 x ROG Strix thank you card
- 1 x Rubber Package for M.2 backplate
- 1 x User guide
|
| Product Line | Strix |
| Product Model | B650E-I GAMING WIFI |
| Product Name | Strix B650E-I GAMING WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Total Number of USB Ports | 8 |
| UPC Alternates | 195553957885 |
| Width | 6.7" |
